Edgeboard Connectors Overview

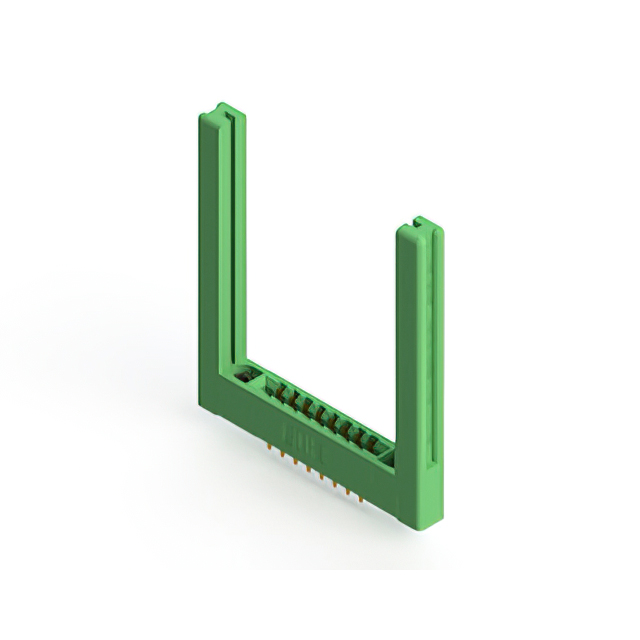

The EDAC Inc. 305-016-521-558 is a dual-edge female card edge connector from the 305 Series, designed for through-hole mounting. It features 16 positions with a 0.156-inch (3.96mm) contact spacing and half-beam contact type. The connector utilizes gold-plated copper alloy contacts with a 10.0µin thickness to ensure reliable signal transmission. It accepts printed circuit boards with a thickness range of 0.054 to 0.070 inches (1.37mm to 1.78mm). The insulator body is made of green thermoplastic polyester, supporting an operating temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with half-beam contacts for secure board retention
• Gold-plated copper alloy contacts provide corrosion resistance and low contact resistance
• Thermoplastic polyester insulator ensures thermal stability within specified operating ranges

Edgeboard Connectors Applications

• General-purpose electronic assemblies requiring dual-edge interface
• Industrial control systems utilizing standard PCB thicknesses
• Consumer electronics hardware integration

Edgeboard Connectors Procurement Notes

Verify that the target printed circuit board thickness falls within the 0.054 to 0.070 inch specification to ensure proper mechanical engagement. Confirm that the application environment remains within the -40°C to 105°C operating temperature range. Ensure compatibility with the 0.156-inch pitch requirement for the specific circuit layout design before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector is required for through-hole assembly. The 16-position count suits moderate density applications. Verify that the 0.156-inch spacing aligns with the PCB trace design. Consider the green thermoplastic polyester housing for standard environmental conditions. This model is part of the broader 305 series family offering various position counts.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 Series, which provides a range of card edge connectors for various industry needs. The series is characterized by its robust construction and standardized dimensions. The 305-016-521-558 specifically addresses applications requiring a 16-position dual-edge interface with through-hole termination capabilities.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include 305-016-521-501 and 305-016-521-558 variants with different suffixes indicating minor packaging or material differences. Cross-series replacement requires verification of pitch and row spacing compatibility.
