305-016-555-207

Edgeboard Connectors Overview

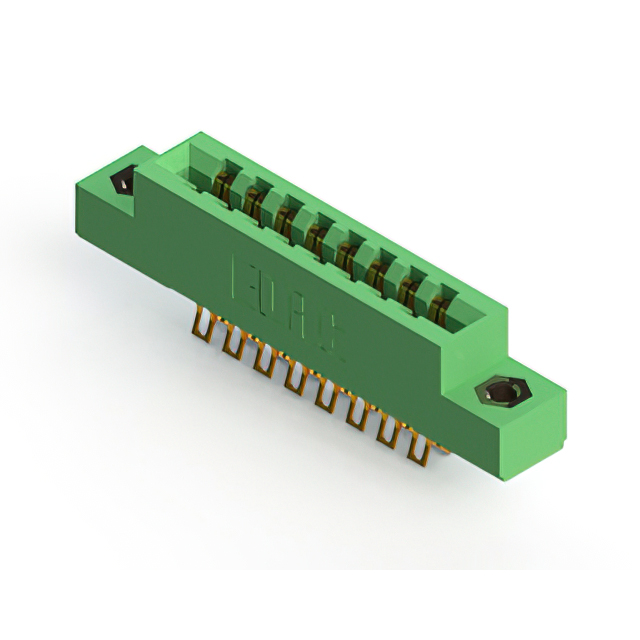

The EDAC Inc. 305-016-555-207 is a standard card edge connector from the 305 series, designed for dual-edge mating with a 16-position configuration. It features a 3.96 mm (0.156 inch) pitch and supports a maximum board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and has a current rating of 5 A. Constructed with a thermoplastic housing, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic housing material for structural integrity
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or certified suppliers. Confirm that the received part matches the specific 305-016-555-207 designation and series requirements. Ensure storage conditions maintain the integrity of the gold plating and thermoplastic housing prior to assembly.

Edgeboard Connectors Selection Notes

Select this model when a 16-position dual-edge interface with a 3.96 mm pitch is required. Consider the 5 A current rating and -40°C to +105°C operating range for environmental suitability. Verify panel mounting compatibility and board thickness constraints before finalizing the design integration.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts while maintaining consistent 3.96 mm pitch specifications. The 305-016-555-207 variant specifically addresses applications requiring a compact 16-contact interface with robust electrical performance characteristics.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series parts sharing identical pitch and mounting styles. Verify mechanical dimensions and contact configurations against alternative manufacturers' equivalents to ensure functional interchangeability without redesigning the host PCB layout.
