305-016-555-268

Edgeboard Connectors Overview

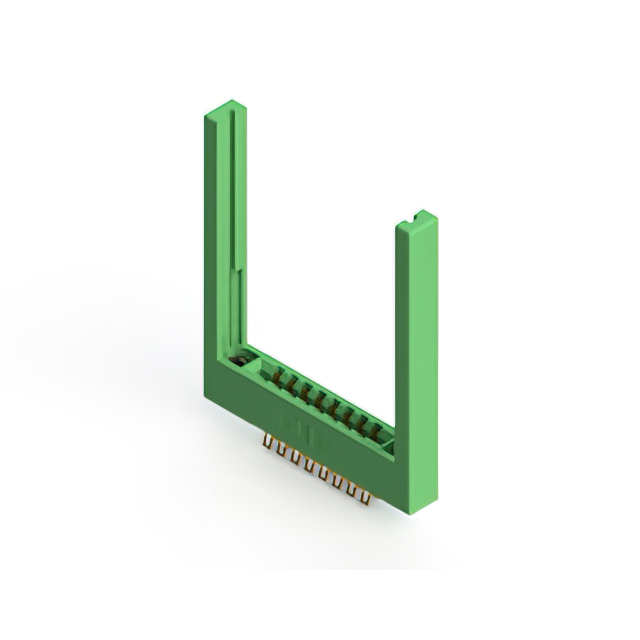

The EDAC Inc. 305-016-555-268 is a standard card edge connector from the 305 series, designed for vertical panel mount applications. It features a dual-row configuration with 16 positions and a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The housing utilizes thermoplastic material, providing structural integrity within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure board integration
• Dual-edge female contacts for signal communication
• Gold-plated copper alloy terminals for conductivity
• Thermoplastic insulator body for durability

Edgeboard Connectors Applications

• Motherboard interconnections
• Daughterboard signal routing
• Extender card interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact physical dimensions and termination style. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the vertical mounting orientation aligns with the mechanical assembly requirements. Cross-reference the manufacturer part number directly with the datasheet to avoid substitution errors.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required for vertical panel mounting. The 16-position count suits moderate-density signal routing applications. Verify that the thermoplastic housing material meets environmental standards for the intended operating temperature range. Ensure the gold-plated contact finish is suitable for the electrical load requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which provides engineered solutions for power connection and signal communication between mother, daughter, and extender cards. The series offers various position counts and mounting options, maintaining consistent 3.96 mm contact spacing across models to support standardized board designs in industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include 305-016-555-202 and 305-016-555-204. These variants share identical row spacing and board thickness acceptance but may differ in housing color or specific flange characteristics. Verify mechanical fit before replacement.
