305-016-555-504

Edgeboard Connectors Overview

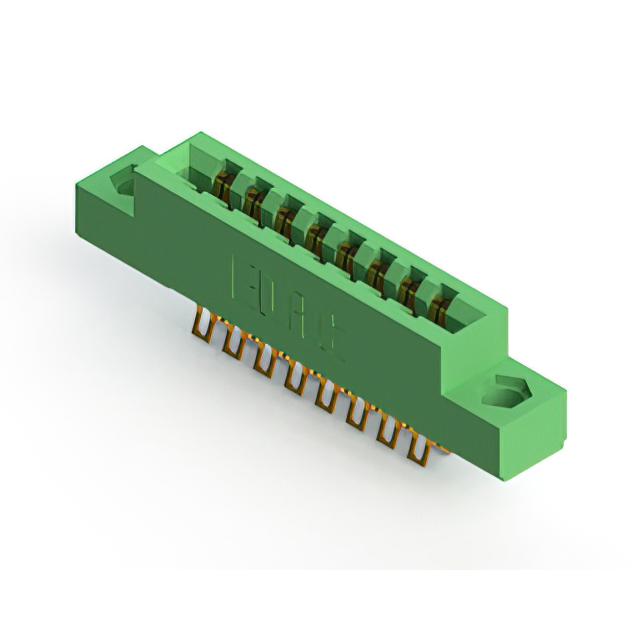

The EDAC Inc. 305-016-555-504 is a standard card edge connector from the 305 series, designed for vertical panel mounting applications. It features a dual-edge configuration with 16 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and accepts board thicknesses ranging from 1.37 mm to 1.78 mm. Electrical specifications include a continuous current rating of 5 A and an insulation resistance of 5 GOhms. The contacts are constructed from copper alloy with gold plating, while the housing is made of green thermoplastic polyester. It operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with solder lug termination
• Dual-edge female contact configuration for non-specified cards
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester housing providing structural stability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces
• General-purpose electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact contact plating and termination style. Ensure compatibility with the target PCB thickness and polarizing key requirements before procurement. Confirm RoHS compliance status directly with the supplier documentation.

Edgeboard Connectors Selection Notes

Select this component when a robust 3.96 mm pitch connection is required for vertical panel installations. The dual-edge design accommodates various card types without specific polarization constraints. Consider the 5 A current rating and thermal performance limits when designing for high-load environments.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers a wide range of position counts and configurations suitable for diverse industrial and commercial applications. The consistent 3.96 mm pitch across the series allows for modular design flexibility.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 series cross-reference guide for verified substitute part numbers. Ensure any replacement maintains the same pitch, row count, and termination style to preserve mechanical fit.
