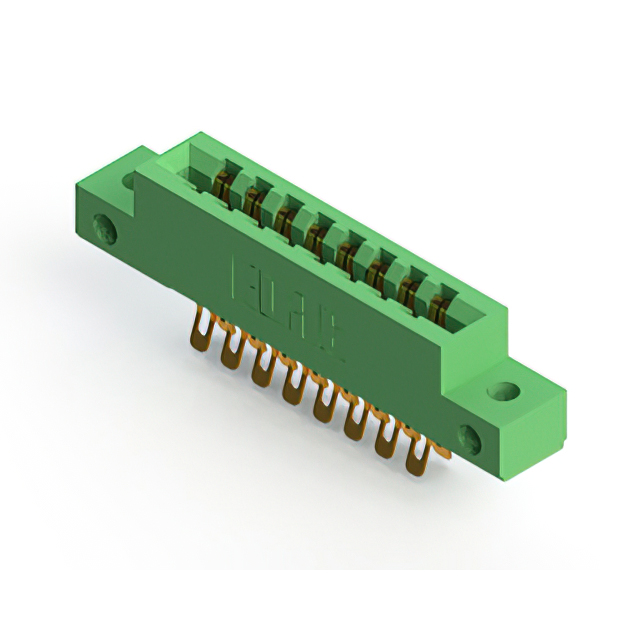

305-016-555-512

$7.94

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Bulk

SKU:a94c38ea996d Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-016-555-512 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-016-555-512

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-016-555-512

305-016-555-512

Edgeboard Connectors Overview

The EDAC Inc. 305-016-555-512 is a dual-sided card edge connector with 16 positions and a 0.156-inch (3.96 mm) pitch. It features female contacts made of copper alloy with gold plating, designed for panel mount installation via solder termination. The unit supports board thicknesses between 0.054 and 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Dual-sided female contact configuration for reliable signal transmission
Gold-plated copper alloy contacts ensure corrosion resistance
Panel mount design facilitates secure mechanical integration

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and insulation material properties. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the intended deployment region.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided interface with a 3.96 mm pitch is required. Confirm that the application environment stays within the specified -40°C to 105°C operational limits. Validate that the mating card thickness falls within the supported range for proper contact engagement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and mounting options for general-purpose electronic interconnect applications requiring robust mechanical stability and electrical performance.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC ordering guide for direct substitutes within the 305 series. Verify pin count, pitch, and termination method matches before considering alternative manufacturers.
