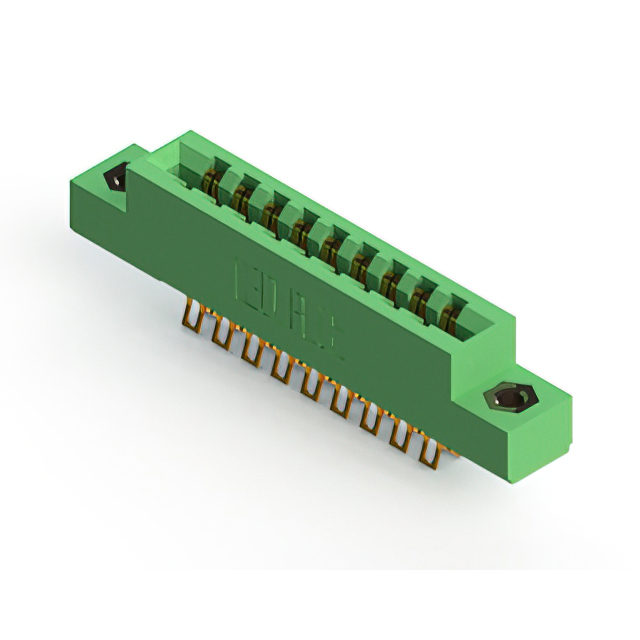

305-018-555-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-018-555-207
- Description：CONN EDGE DUAL FMALE 18POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：9
- Number of Positions：18
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-018-555-207
Edgeboard Connectors Overview
The EDAC Inc. 305-018-555-207 is a standard card edge connector designed for vertical panel mounting applications. It features an 18-position dual-row configuration with a 3.96 mm (0.156 inch) contact pitch. The component utilizes gold-plated copper alloy contacts and a thermoplastic insulator body, rated for a maximum operating temperature of +105°C and a minimum of -40°C. It supports PCB thicknesses of approximately 1.57 mm and offers an insulation resistance of 5 GOhms.
Edgeboard Connectors Feature Summary
- Vertical panel mount design with flush flange and threaded inserts
- Gold-plated contacts on mating area with tin-plated tails
- Dual-edge female connector accepting non-specified cards
Edgeboard Connectors Applications
- Industrial control system interconnects
- Panel-mounted modular electronics assemblies
- Communication equipment backplanes
Edgeboard Connectors Procurement Notes
Verify the specific suffix code to confirm plating specifications, as variations exist within the series. Confirm that the threaded insert size matches the M3 specification documented for this model. Ensure the target PCB thickness aligns with the 1.57 mm nominal requirement for proper mechanical retention.
Edgeboard Connectors Selection Notes
Select this model when a low-profile, high-reliability connection is required for thick PCBs. The 3.96 mm pitch allows for wider spacing compared to standard 2.54 mm connectors. Consider the solder lug termination type for secure panel integration rather than surface-mount constraints.
Edgeboard Connectors Part Context
This component belongs to the EDAC 305 Series, which specializes in heavy-duty card edge connectors. The series is characterized by robust construction suitable for harsh environments. The 305-018 variant specifically addresses applications requiring a compact 18-pin interface with high current handling capabilities.
Edgeboard Connectors Replacement Considerations
Direct substitutes include the 305-018-555-208 and 305-018-555-268, provided the flange thread specifications are compatible. Verify that alternative parts maintain the same 3.96 mm pitch and dual-row configuration to ensure board layout compatibility.
