305-020-500-204

Edgeboard Connectors Overview

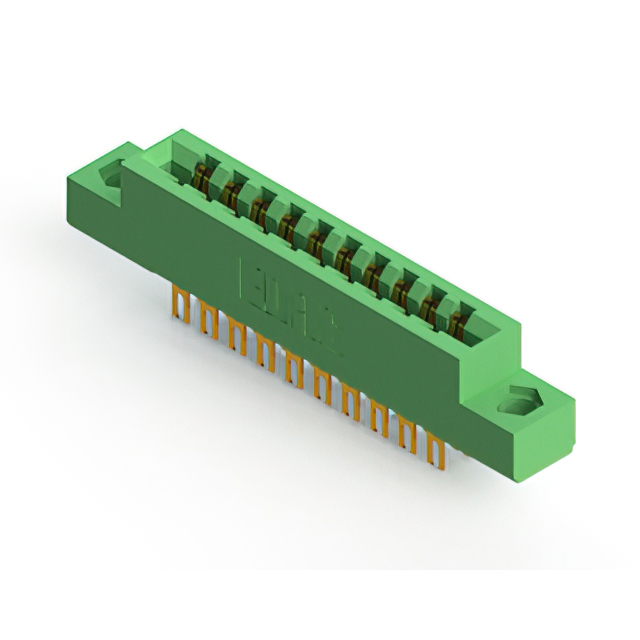

The EDAC Inc. 305-020-500-204 is a dual female card edge connector from the 305 Series, featuring 20 positions arranged in two rows of ten. It utilizes a .156 inch (3.96mm) contact spacing and a .140 inch (3.56mm) row spacing. The connector is designed to accept printed circuit boards with a nominal thickness of .062 inches (1.57mm). Constructed with copper alloy contacts and a green insulator body, this straight-mount component provides reliable electrical interconnection for standard card edge applications.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing 20 total connection points
• Low profile insulator body design
• Copper alloy contact material for conductivity
• Compatible with .062 inch nominal PCB thickness

Edgeboard Connectors Applications

• Standard card edge interface connections
• Industrial control board interconnects
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct mounting style and termination type. Confirm RoHS compliance status if required by project specifications. Cross-reference the part number with official EDAC documentation to validate availability and lead times before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge connector with .156 inch pitch is required. Ensure the target PCB thickness matches the .062 inch specification. Consider the straight orientation and surface mount requirements during mechanical layout planning to guarantee proper fit and alignment within the assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which offers various mounting options and configurations. The series is characterized by its standardized spacing dimensions and robust construction suitable for general electronic interconnect needs. The specific model denotes the pin count and physical dimensions within this broader product family.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Ensure any replacement maintains identical contact spacing, row count, and PCB thickness compatibility. Verify that mechanical dimensions and mounting styles match the original design constraints.
