305-020-500-208

Edgeboard Connectors Overview

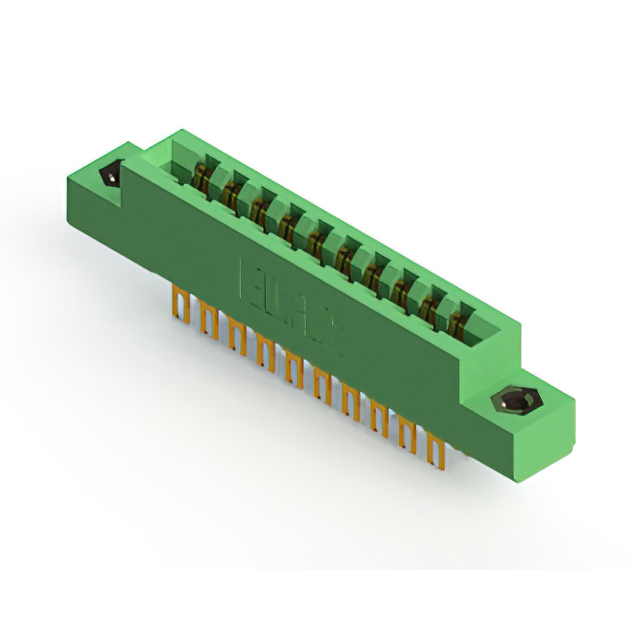

The EDAC Inc. 305-020-500-208 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. It features a dual-row configuration with 20 positions and a pitch of 3.96 mm (0.156 inches). The component supports a PCB thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure low resistance and corrosion resistance. Rated for 5 A continuous current, it employs panel mount installation with solder eyelet termination. The thermoplastic polyester housing provides structural integrity across an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Gold-plated copper alloy contacts ensure durable electrical connectivity
• Thermoplastic polyester housing offers thermal stability and insulation

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interfaces
• Telecommunications equipment utilizing standardized card edge modules
• Test and measurement instruments needing high-reliability connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact termination style and housing color variations. Ensure compatibility with target PCB thickness and polarizing key requirements before integration. Cross-reference manufacturer datasheets for updated environmental compliance status and lead time estimates.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 20-position interface with 3.96 mm pitch is required. Confirm that the 5 A current rating and 1800 VACrms dielectric strength meet circuit specifications. Validate that the panel mount orientation and solder eyelet termination align with mechanical assembly constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its versatility in accommodating various polarizing keys and its consistent 3.96 mm pitch across multiple position counts. The 305 series is widely used in applications demanding reliable, high-density interconnects within constrained panel spaces.

Edgeboard Connectors Replacement Considerations

Consult EDAC technical support for direct substitutes within the 305 or 315 series. Verify pin count, pitch, and termination type match before considering alternative part numbers.
