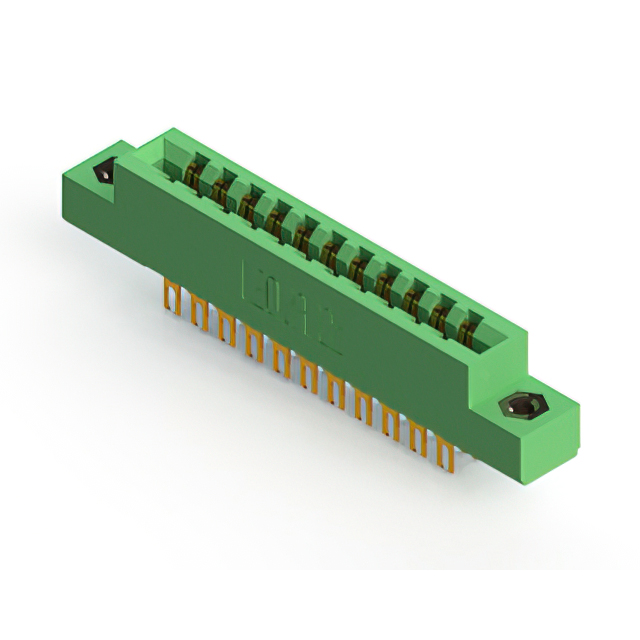

305-022-500-208

$7.19

Description：CONN EDGE DUAL FMALE 22POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:71a300fb880a Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-022-500-208 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 22POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-022-500-208

Description：CONN EDGE DUAL FMALE 22POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：11
Number of Positions：22
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-022-500-208

305-022-500-208

Edgeboard Connectors Overview

The EDAC Inc. 305-022-500-208 is a standard card edge connector designed for panel mounting in a vertical orientation. It features 22 positions arranged in a dual row configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and terminates via solder eyelets. It accommodates a board thickness of 1.57 mm and provides a continuous current rating of 5 A. The housing is constructed from thermoplastic material, supporting an operating temperature range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-row contact arrangement for high-density signal routing
Gold-plated copper alloy contacts ensure reliable conductivity
Solder eyelet termination facilitates secure panel mounting
Thermoplastic housing provides structural stability

Edgeboard Connectors Applications

Industrial control panels requiring vertical interconnects
Electronic modules utilizing standard card edge interfaces
Equipment needing polarizing key compatibility

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and plating specifications. Ensure that the required polarizing keys are sourced separately if needed for assembly. Confirm compliance with relevant environmental directives such as RoHS through the manufacturer's official certification documents before final procurement.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution with a 3.96 mm pitch is required. The dual-row design supports applications needing multiple connections in a compact footprint. Verify that the target circuit board thickness matches the 1.57 mm specification to ensure proper mechanical engagement and electrical continuity during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its robust construction and compatibility with various polarizing keys. These connectors are engineered for durability in demanding environments, offering consistent performance across a wide temperature range while maintaining precise alignment with mating card edges.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants for alternative position counts or termination styles. Verify that any substitute maintains the same 3.96 mm pitch and dual-row configuration to ensure mechanical fit and electrical compatibility within the existing system design.
