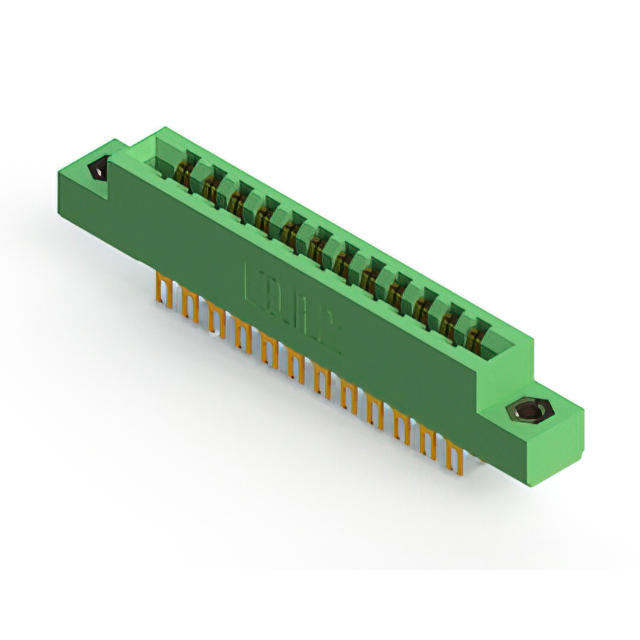

305-024-500-507 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 24POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-024-500-507
- Description：CONN EDGE DUAL FMALE 24POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：12
- Number of Positions：24
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-024-500-507
Edgeboard Connectors Overview
The EDAC Inc. 305-024-500-507 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. It features a dual female configuration with 24 positions and a pitch of 3.96 mm (0.156 inches). The connector supports a PCB thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure durability and low contact resistance. Rated for 5 A current, it employs a solder pin termination type for secure board attachment.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for robust card edge interface
- Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
- Solder pin termination ensures stable mechanical and electrical connection
Edgeboard Connectors Applications
- Industrial control system interconnects
- Embedded hardware module connections
- Telecommunications equipment backplanes
Edgeboard Connectors Procurement Notes
Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the ordering suffix matches the desired contact plating and termination style. Cross-reference the datasheet for environmental ratings and mechanical dimensions before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this component when a dual-sided card edge connector with a 3.96 mm pitch is required. Consider the 5 A current rating and gold plating for applications demanding high reliability. Verify that the host PCB thickness aligns with the specified 1.57 mm limit to ensure proper insertion and retention force.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 305 series, which offers various position counts and configurations. The 305-024-500-507 specifically provides a 24-position layout, distinguishing it from other variants in the series such as the 305-040-520-507 or 305-024-500-512. It serves as a standardized solution for vertical panel mounting applications.
Edgeboard Connectors Replacement Considerations
Direct substitutes within the same series include variations like 305-024-500-512, which may differ in packaging or compliance status. Always verify mechanical fit and electrical specifications before swapping components.
