305-024-500-512

Edgeboard Connectors Overview

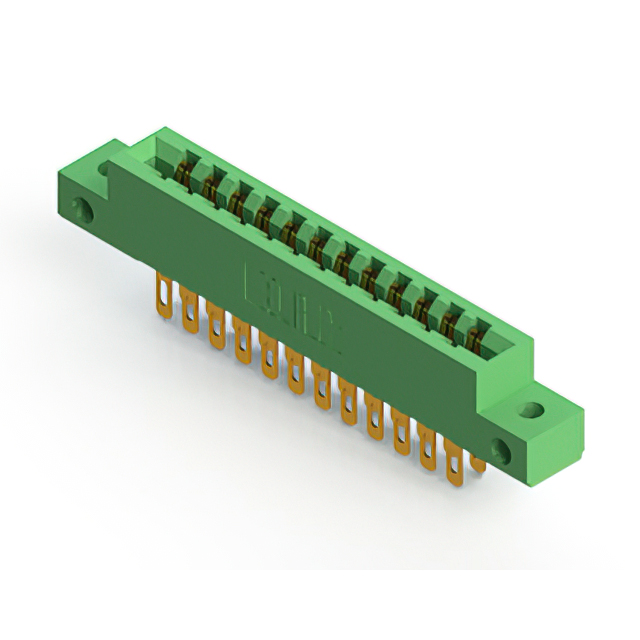

The EDAC Inc. 305-024-500-512 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 24 positions with a 3.96 mm (0.156 inch) pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and is rated for 5 A current. Constructed with a thermoplastic polyester housing, it offers vertical panel mounting capabilities. This component operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester housing for structural stability
• Vertical panel mount configuration for space-efficient integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment board assembly
• Automotive electronics module connections
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure that the ordering information matches the required contact count and pitch dimensions. Confirm RoHS compliance status through the manufacturer's latest environmental declarations before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge female connector with a 3.96 mm pitch is required for panel-mounted applications. Consider the 5 A current rating and -40°C to +105°C operating range for suitability in industrial environments. Verify that the target PCB thickness falls within the supported range of up to 1.57 mm for proper mechanical engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors, which are widely used in high-reliability electronic assemblies. The series offers various position counts and mounting styles to accommodate different board interface requirements. The 305-024 variant specifically addresses applications needing 24-position connectivity with durable gold-plated contacts.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Ensure that any replacement maintains the same 3.96 mm pitch, 24-position count, and dual-edge female configuration. Verify compatibility with existing panel mounting hardware and PCB thickness constraints.
