305-024-521-507

Edgeboard Connectors Overview

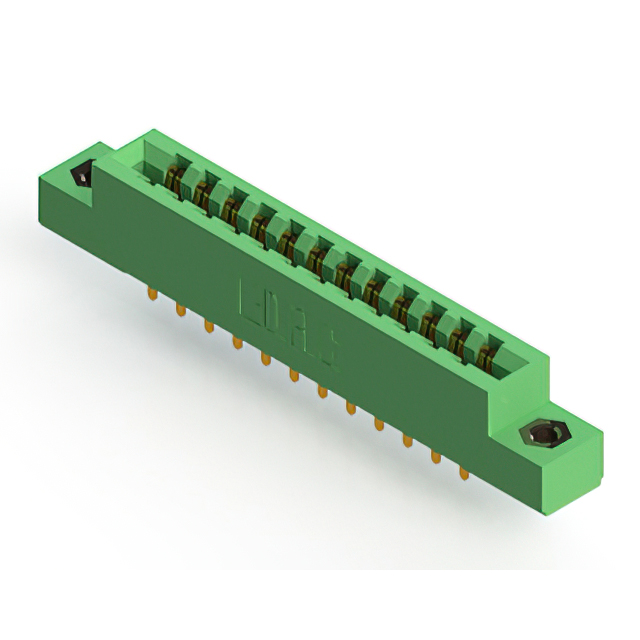

The EDAC Inc. 305-024-521-507 is a standard card edge connector from the 305 series, designed for vertical panel mounting applications. It features a dual female configuration with 24 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and accepts card thicknesses ranging from 1.37 mm to 1.78 mm. Contacts are constructed from copper alloy with gold plating and terminate via solder lug connections. The housing is made of thermoplastic insulation, rated for operation between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration provides reliable signal transmission for double-sided circuit boards.
• Vertical panel mount style facilitates secure integration into chassis or enclosure structures.
• Gold-plated copper alloy contacts ensure durable conductivity and corrosion resistance.
• Thermoplastic insulation material supports stable performance across wide temperature ranges.

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Medical device internal board connections

Edgeboard Connectors Procurement Notes

Verify that the specific suffix codes match the required flange and termination specifications. Confirm compatibility with the target PCB card thickness range before procurement. Ensure the supplier provides official datasheets to validate electrical ratings and mechanical dimensions against project requirements.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for double-sided cards. The 3.96 mm pitch dictates the necessary trace spacing on the mating board. Verify that the solder lug termination method aligns with the assembly process capabilities and available panel space constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options. The 305-024 variant specifically addresses needs for moderate density connections requiring robust panel mounting stability.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 305 series parts for different position counts. Verify that alternative suppliers offer identical 3.96 mm pitch and dual female configurations to maintain mechanical fit.
