305-024-521-512

Edgeboard Connectors Overview

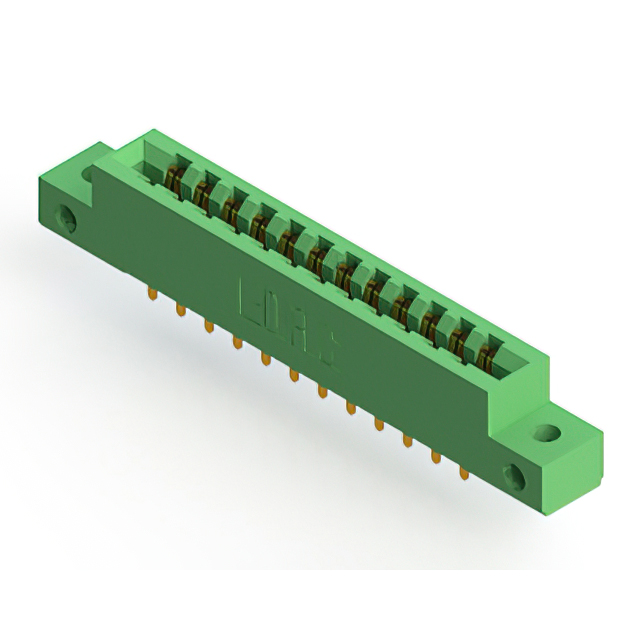

The EDAC Inc. model 305-024-521-512 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 24 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and accepts board thicknesses ranging from 1.37 mm to 1.78 mm. Constructed with copper alloy contacts featuring gold plating, it ensures reliable electrical performance. The housing is made of thermoplastic polyester, providing durability and stability.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card edge insertion
• Gold-plated copper alloy contacts ensure corrosion resistance and conductivity
• Thermoplastic polyester housing provides structural integrity and insulation
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Test and measurement instrumentation boards
• Automotive electronic control units

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, contact type, and flange specifications. Ensure compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Confirm RoHS compliance status if required by project regulations. Cross-reference the EDAC part number with distributor catalogs to validate current availability and lead times before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with a 3.96 mm pitch is required for panel-mounted assemblies. The 24-position layout suits moderate-density signal routing needs. Verify that the operating temperature range of -40°C to +105°C aligns with the environmental conditions of the application. Ensure the solder pin termination method matches the assembly process capabilities.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its use of thermoplastic polyester housings and gold-plated contacts. These connectors are engineered for high-reliability applications where stable electrical connections are critical. The 305 series offers various position counts and mounting styles to accommodate diverse design requirements.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models such as 305-014-521-202 and 305-038-520-502, which share similar pitch and material characteristics but differ in position count. Verify mechanical fit and electrical ratings before substitution.
