305-024-555-207

Edgeboard Connectors Overview

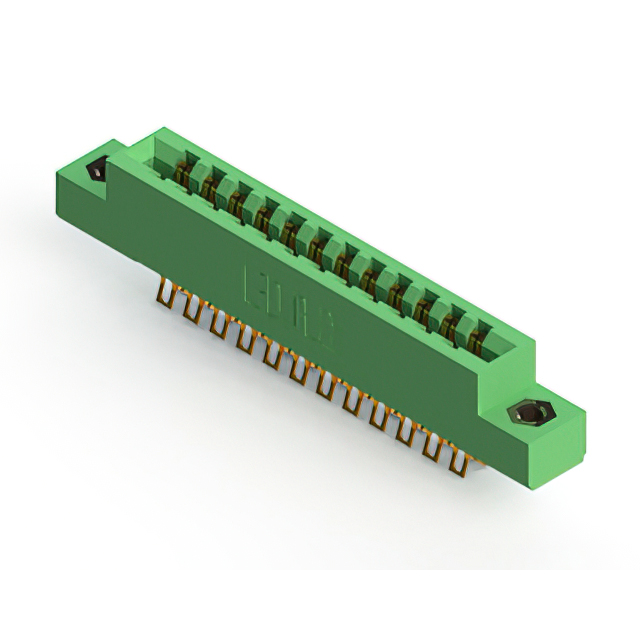

The EDAC Inc. 305-024-555-207 is a standard card edge connector featuring 24 positions in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The connector employs gold plating on the mating area to ensure reliable signal transmission, while the tails feature tin plating over nickel underplating for soldering integrity. Designed for panel mounting at a vertical angle, this header supports a current rating of 5 amps per contact.

Edgeboard Connectors Feature Summary

• Dual-edge female design accommodates double-sided PCBs for increased I/O density within a compact footprint.
• Gold-plated contacts provide corrosion resistance and stable electrical performance across repeated mating cycles.
• Panel-mount installation style ensures secure mechanical fixation and precise alignment during assembly.

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interfaces
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify that the target application requires a dual-edge connector compatible with 1.57 mm board thickness. Confirm that the 3.96 mm pitch aligns with the existing PCB layout constraints. Ensure the panel-mount orientation matches the enclosure design requirements before finalizing the order.

Edgeboard Connectors Selection Notes

Select this component when high reliability and low contact resistance are critical for industrial environments. The gold plating offers superior durability compared to tin-only options. Consider the vertical panel-mount form factor if space efficiency and rigid connection stability are primary design drivers.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by robust construction suitable for demanding applications. The specific model number indicates the position count, row configuration, and plating specifications defined by the manufacturer's coding system.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series headers with identical 24-position dual-row configurations and matching 3.96 mm pitch. Verify that any alternative maintains the same 1.57 mm board thickness tolerance and panel-mount orientation to ensure mechanical compatibility.
