305-058-500-512

Edgeboard Connectors Overview

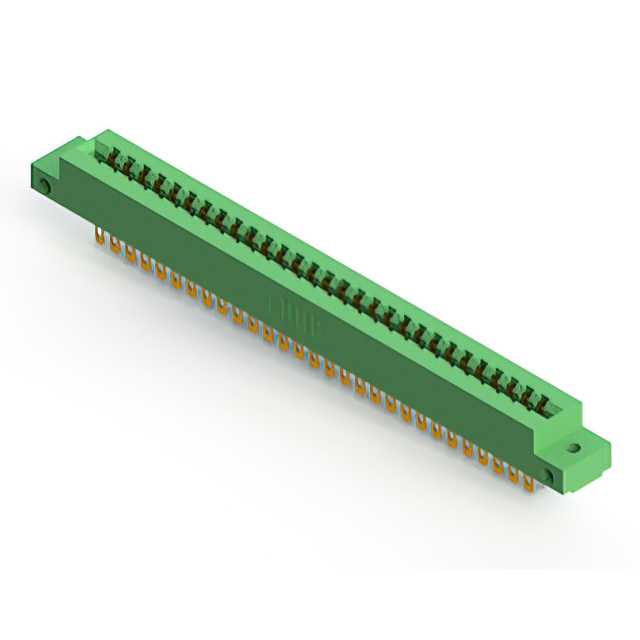

The EDAC Inc. 305-058-500-512 is a standard card edge connector featuring 58 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed for wire hole termination. The connector employs gold-plated copper alloy contacts to ensure reliable signal transmission. Constructed with a thermoplastic polyester housing, it supports panel mount installation at a vertical angle. The unit is rated for 5 A current and accommodates a board thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density interconnects
• Gold-plated copper alloy contacts for corrosion resistance
• Wire hole termination style for secure soldering
• Thermoplastic polyester housing for structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust connectivity
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating, housing color, and termination type. Ensure the selected variant matches the required board thickness and mounting orientation. Cross-reference the part number with official distributor catalogs to confirm availability status and lead times prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 3.96 mm pitch is required. Confirm that the 58-position layout aligns with the PCB design constraints. Verify that the wire hole termination method is compatible with the assembly process. Ensure the 5 A current rating meets the electrical load requirements of the application circuit.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series, which provides standard card edge connectors with 3.96 mm spacing. The series offers various position counts and termination styles. The 305-058-500-512 specifically denotes the 58-position variant with wire hole contacts and gold plating, fitting within the broader family of industrial-grade interconnect solutions.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include the 305-058-520-512, which shares the same position count and pitch but may differ in housing characteristics. Verify mechanical dimensions and electrical ratings before substitution.
