305-058-521-502

Edgeboard Connectors Overview

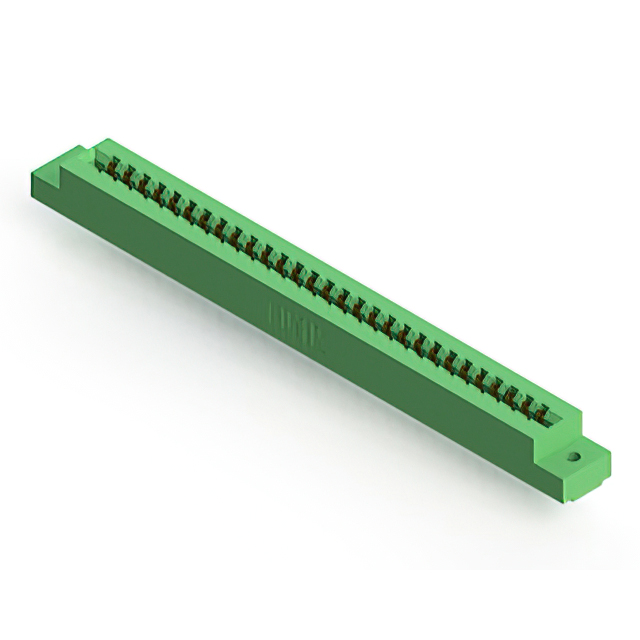

The EDAC Inc. 305-058-521-502 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 58 positions with a 3.96 mm (0.156 inch) pitch and supports a 1.57 mm PCB thickness. The connector utilizes gold-plated copper alloy contacts and thermoplastic polyester housing. Rated for 5 A current, it employs solder pin termination and panel mount vertical installation.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability
• Solder pin termination facilitates robust panel mounting

Edgeboard Connectors Applications

• Industrial control systems requiring high-density I/O
• Telecommunications equipment backplanes
• Automotive electronic modules
• Medical device interface boards

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with target PCB stack-up and mating card dimensions. Ensure that the required current rating and environmental operating conditions align with the application specifications before procurement. Cross-reference the manufacturer's latest datasheet for any updates on material composition or compliance standards.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with a 3.96 mm pitch is required. Consider the 58-position count and 5 A current rating relative to the system's electrical load. Verify that the panel mount vertical orientation fits the mechanical enclosure constraints. Confirm that the gold plating meets the necessary corrosion resistance requirements for the intended environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and row configurations to support diverse board-to-board and board-to-backplane connections. The 305 series is characterized by its durable construction and standardized pitch, making it suitable for general-purpose industrial and commercial applications requiring reliable interconnectivity.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variants with different position counts such as 305-048-520-512 or 305-038-520-502, provided the pitch and mounting style remain compatible. Ensure that any replacement maintains the dual-row configuration and identical 3.96 mm pitch to guarantee proper fitment.
