305-058-556-278

Edgeboard Connectors Overview

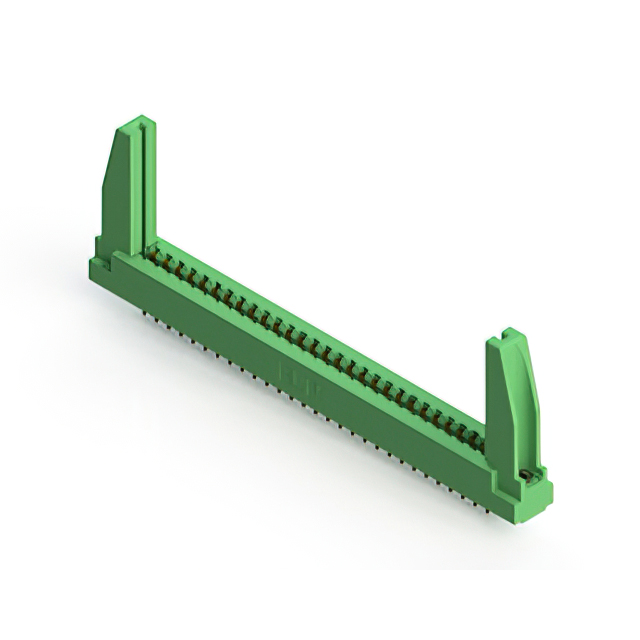

The EDAC Inc. 305-058-556-278 is a standard card edge connector from the 305 series, designed for vertical panel mounting applications. It features a dual-row configuration with 58 positions and a pitch of 3.96 mm (0.156 inches). The connector accepts PCBs with a nominal thickness of 1.57 mm. Contacts are made of copper alloy with gold plating, rated for 5 A current. The housing is constructed from thermoplastic material, supporting an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with solder pin termination
• Dual-row contact configuration for high-density connections
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic insulator housing with UL 94V-0 rating

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Medical equipment interconnect solutions
• Agricultural technology hardware in harsh environments
• General-purpose electronic board-to-board or backplane connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct contact plating thickness and housing color specifications. Confirm RoHS compliance status and REACH restrictions prior to integration. Check for regional distribution limitations as availability may vary by supplier region. Ensure the selected variant matches the required PCB thickness tolerance of 1.57 mm for proper mechanical fit.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount card edge connector with 58 positions is required. The 3.96 mm pitch and dual-row layout suit applications needing moderate density. Verify that the target PCB thickness falls within the acceptable range of 1.37 mm to 1.78 mm. Consider the 5 A current rating and -40°C to +105°C operating temperature for environmental compatibility.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, which includes various position counts and row configurations. The series is characterized by its use of thermoplastic polyester insulators and gold-plated contacts. Similar parts in the series include 305-054-556-278 and 305-050-556-201, differing primarily in position count and specific housing variations.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult EDAC Inc. directly for cross-reference recommendations or updated series replacements.
