305-058-556-501

Edgeboard Connectors Overview

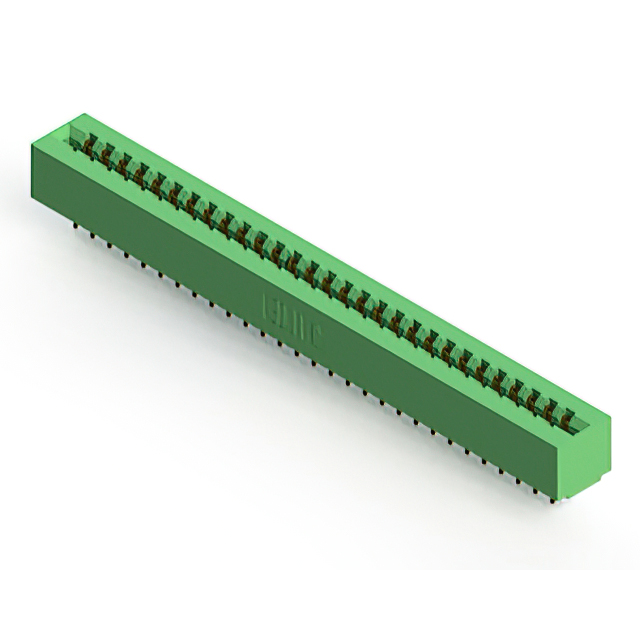

The EDAC 305-058-556-501 is a standard card edge connector designed for panel mounting with a vertical orientation. It features 58 positions in a dual-row configuration, utilizing a 3.96 mm (0.156 inch) pitch. The connector accepts non-specified dual-edge cards with a thickness range of 1.37 mm to 1.78 mm. Contact plating is gold over nickel on copper alloy terminals, supporting a continuous current rating of 5 A and an insulation resistance of 5 GOhms. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Dual-edge female contact design ensures reliable signal transmission
• Thermoplastic housing provides structural integrity and electrical insulation

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interconnects
• Telecommunications equipment utilizing standardized card edge interfaces
• Test and measurement instrumentation needing high-density connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official ordering guide to confirm terminal type and plating specifications. Ensure compatibility with the target PCB panel thickness and polarizing key requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with 58 positions is required. Confirm that the application environment stays within the specified temperature range and that the panel mounting style aligns with the mechanical design constraints of the enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options, providing a scalable solution for board-to-board or backplane applications where vertical panel mounting is necessary for system integration.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 series ordering guide for alternative part numbers with different position counts or termination styles. Direct substitutes must match the 3.96 mm pitch and dual-edge acceptance criteria to maintain mechanical fit.
