305-060-520-212

Edgeboard Connectors Overview

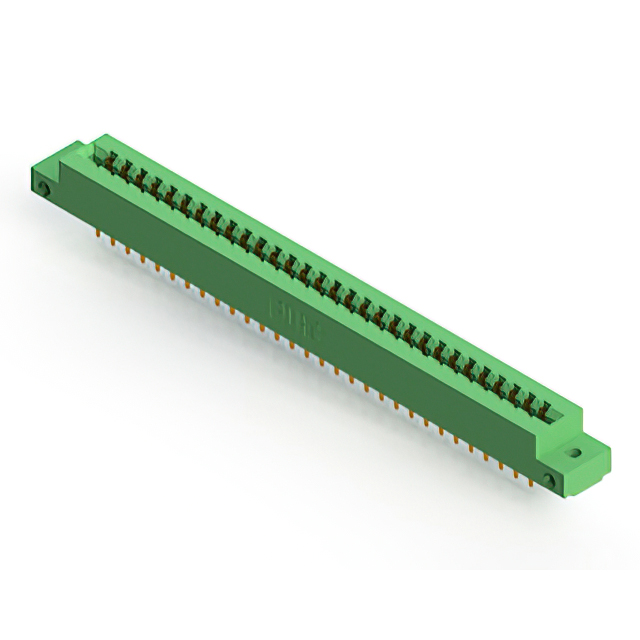

The EDAC Inc. 305-060-520-212 is a standard card edge connector from the 305 series, designed for dual female mating with printed circuit boards. It features a 60-position configuration with a 3.96 mm (0.156 inch) contact spacing and a 3.56 mm row spacing. The unit accepts PCBs with a nominal thickness of 1.57 mm (0.062 inch). Constructed with copper alloy contacts featuring gold plating and a thermoplastic polyester insulator, it supports panel mount installation at a vertical angle. The connector provides a continuous current rating of 5 A and an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row female configuration for reliable board-to-board interconnection
• Gold-plated copper alloy contacts ensure stable signal transmission
• Thermoplastic polyester housing provides thermal stability and durability
• Panel mount design facilitates secure vertical integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standardized connector pitches
• Test and measurement instrumentation panels
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact mechanical dimensions and contact finish specifications. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the panel mounting style aligns with the assembly requirements. Cross-reference the RoHS compliance status with current regulatory standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface with a 3.96 mm pitch is required for high-density applications. The 5 A current rating suits moderate power distribution needs. Verify that the vertical panel mount orientation fits the enclosure constraints. Consider the thermoplastic polyester material properties for environmental resistance in operational settings.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, which offers various positioning options and mounting styles. The series is characterized by its standardized 3.96 mm pitch, allowing for interchangeability within compatible system designs. The 305-060-520-212 specifically addresses the need for 60-position connectivity in space-constrained vertical installations.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing position counts or mounting variations. Verify that alternative parts maintain the 3.96 mm pitch and 1.57 mm PCB thickness acceptance criteria to ensure mechanical fit.
