305-060-521-268

Edgeboard Connectors Overview

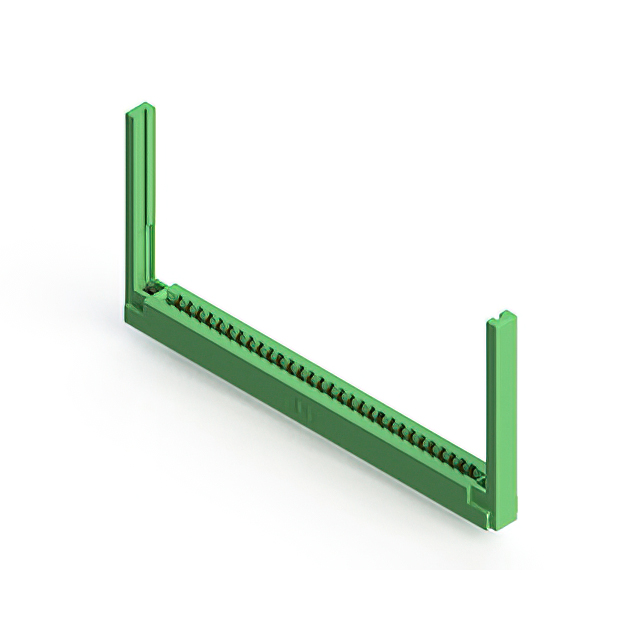

The EDAC 305-060-521-268 is a dual-row standard card edge connector designed for vertical panel mounting. It features 60 positions with a 3.96 mm (0.156 inch) contact spacing and a row spacing of 3.56 mm (0.140 inch). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Contacts are constructed from copper alloy with gold plating, providing a continuous current rating of 5 A and an insulation resistance of 5 GOhms. The housing is made of green thermoplastic polyester, supporting an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Low profile insulator body design for compact integration
• Gold-plated copper alloy contacts ensure reliable signal transmission

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology systems operating in harsh environments
• Industrial control panels utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination style, and flange specifications. Ensure compatibility with the target PCB thickness and polarizing key requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density 60-position interface is required within the EDAC 305 series. Confirm that the application environment falls within the specified temperature range and that the panel mounting style aligns with the mechanical design constraints of the enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series of standard card edge connectors. The series is characterized by its robust construction and versatility in accepting various polarizing keys. It serves as a reliable interconnection solution for applications demanding stable electrical performance across diverse industrial sectors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing position counts or termination styles. Verify mechanical footprint compatibility when considering alternative manufacturers' offerings.
