Edgeboard Connectors Overview

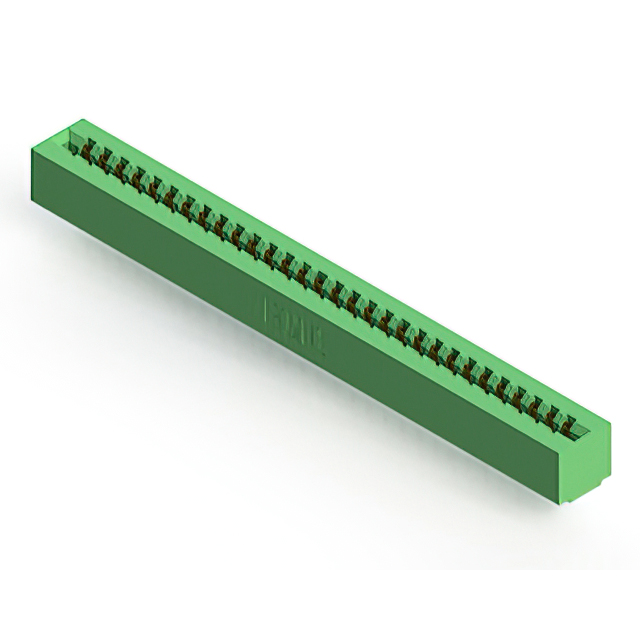

The EDAC Inc. 305-060-521-501 is a dual-edge female card edge connector designed for vertical panel mount applications. It features 60 positions with a 0.156-inch (3.96mm) pitch and utilizes gold-plated contacts on a copper alloy base. The connector supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C. Constructed with green thermoplastic insulation, it ensures reliable signal transmission in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated contacts ensure corrosion resistance and low contact resistance
• Vertical panel mount design facilitates structured system integration
• Thermoplastic insulation provides stability across wide temperature ranges

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronics modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm compatibility with required board thicknesses and termination styles. Ensure that the selected variant matches the intended mechanical constraints and environmental ratings for the target application before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge interface is required for vertical mounting. Consider the 0.156-inch pitch and specified board thickness limits during PCB layout. Evaluate the thermal operating range and gold plating requirements to ensure long-term reliability in the intended operational environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options to accommodate diverse electronic assembly needs. The 305-060-521-501 specifically addresses applications requiring a 60-position dual-edge connection with panel-mount capabilities.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with different position counts or termination types. Verify mechanical dimensions and electrical specifications before replacing with alternative manufacturers' components to ensure fit and function.
