305-060-521-502

Edgeboard Connectors Overview

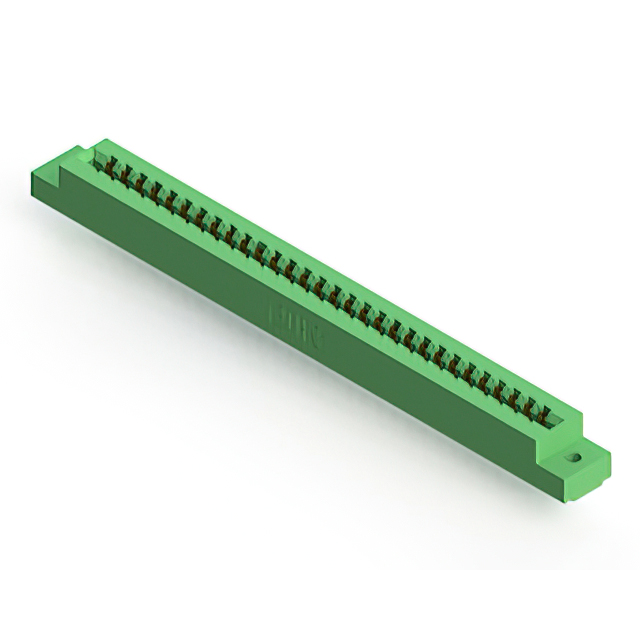

The EDAC Inc. 305-060-521-502 is a dual-edge card edge connector designed for vertical panel mount applications. It features 60 positions with a 0.156-inch (3.96 mm) contact spacing and utilizes female half-beam contacts. The unit is constructed with a green thermoplastic polyester insulator and copper alloy terminals finished with gold plating. It supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Vertical panel mount design with flange for stable installation
• Gold-plated copper alloy contacts ensuring reliable conductivity
• Thermoplastic polyester insulation providing thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment utilizing standard card edge modules
• Agricultural technology hardware in harsh environments
• General-purpose electronic circuit board assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 305 Series Ordering Guide to ensure compatibility with required board thicknesses and mounting styles. Confirm RoHS3 compliance status directly with the supplier or through authorized distributors, as environmental declarations may vary by production batch. Cross-reference the part number with the latest datasheet to validate pin count and spacing specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density 60-position interface is required for vertical panel mounting. Ensure the target printed circuit board adheres to the specified 0.054 to 0.070-inch thickness range for proper contact engagement. Consider the 0.156-inch pitch for compatibility with existing system layouts and verify that the operating temperature environment falls within the -40°C to +105°C operational limits defined by the manufacturer.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series of standard card edge connectors, which are widely used in industrial and medical applications. The series offers various position counts and mounting options, all sharing consistent electrical characteristics and material standards. This specific model provides a balanced solution for applications needing reliable signal transmission through a dual-edge interface with durable gold-plated contacts.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 Series Ordering Guide for direct substitutes with differing pin counts or mounting variations. Verify mechanical dimensions and electrical ratings before substituting with generic equivalents. No alternative part numbers are confirmed in public documentation; use only manufacturer-approved cross-references.
