305-062-500-202

Edgeboard Connectors Overview

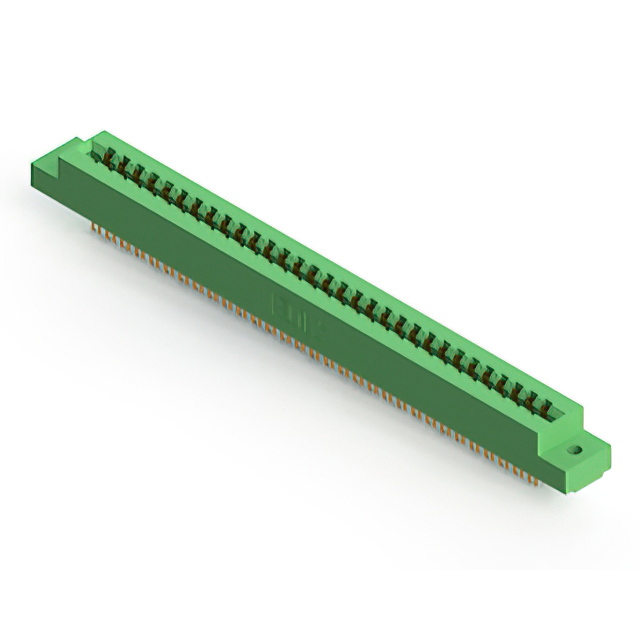

The EDAC Inc. 305-062-500-202 is a standard card edge connector from the 305 series, designed for dual-edge female applications. It features 62 positions with a 0.156-inch (3.96 mm) pitch and supports a current rating of 5 A. The connector utilizes gold-plated copper alloy contacts housed in a thermoplastic body, suitable for panel mounting at a vertical angle. It accommodates a board thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure card insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic housing provides structural stability
• Vertical panel mount design facilitates space-efficient integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust signal interfaces
• Telecommunications equipment utilizing standard card edge modules
• Automotive electronics demanding high reliability
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB board thickness of 1.57 mm before procurement. Cross-reference the manufacturer's latest datasheet to confirm RoHS compliance status and any regional distribution restrictions that may apply to this specific part number.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface with 62 positions is required for vertical panel mounting. The 3.96 mm pitch dictates the necessary trace spacing on the mating card. Consider the 5 A current rating and thermoplastic housing material for thermal management requirements. Verify that the operating temperature range of -40°C to +105°C aligns with the environmental conditions of the intended application.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in modular electronic designs. The series offers various position counts and mounting styles, providing flexibility for different board densities. The 305-062-500-202 specifically addresses needs for higher pin counts in dual-edge configurations, maintaining consistent mechanical and electrical standards across the product line.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series variants with matching 62-position dual-edge specifications, such as 305-062-500-203 or 305-062-520-502, provided the end-type and housing color preferences align. Verify that alternative parts maintain the same 3.96 mm pitch and 1.57 mm board thickness compatibility to ensure mechanical fit without modification.
