305-062-500-558

Edgeboard Connectors Overview

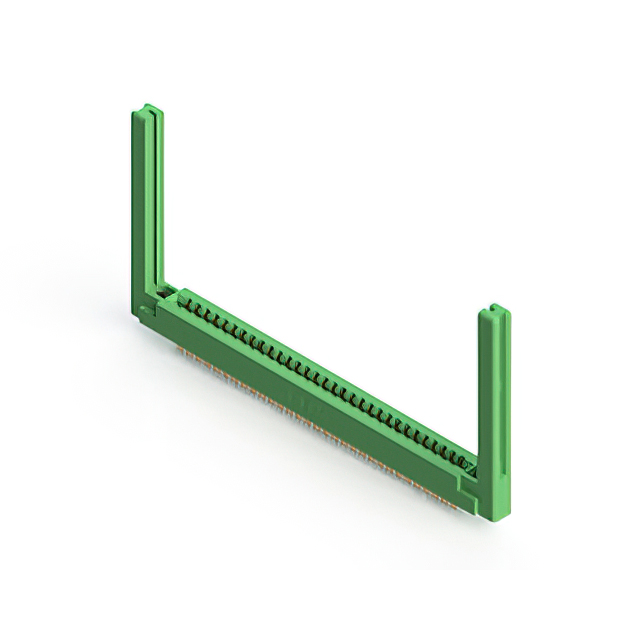

The EDAC Inc. 305-062-500-558 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features a dual female configuration with 62 positions and a pitch of 3.96 mm (0.156 inches). The component supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 5 A current, it employs a solder lug termination type for secure PCB attachment. The housing is constructed from thermoplastic material, providing durability in demanding environments.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density interconnects
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Panel mount installation style with vertical orientation
• Solder lug termination for robust mechanical and electrical connection

Edgeboard Connectors Applications

• Industrial control systems requiring reliable panel-mounted interfaces
• Communication equipment utilizing standard card edge modules
• Automotive electronics with high-current signal requirements
• Medical devices needing durable connector solutions

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count, plating specifications, and termination style. Ensure compatibility with the target printed circuit board thickness of 1.57 mm before integration. Confirm that the panel mounting design aligns with the mechanical constraints of the final assembly enclosure. Cross-reference the RoHS compliance status with current regulatory requirements for the intended market.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with a 3.96 mm pitch is required for panel-mounted applications. The 62-position layout suits designs needing substantial I/O density within a compact footprint. Consider the 5 A current rating for power distribution or high-signal integrity needs. Verify that the solder lug termination method matches the available PCB fabrication capabilities and assembly processes.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are engineered for general-purpose electronic interconnections. The series offers various position counts and mounting options to accommodate diverse system architectures. As an edgeboard connector, it facilitates modular design approaches by allowing interchangeable circuit cards to be plugged into a fixed base unit, simplifying maintenance and upgrades.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 305 series variants with matching 62 positions and 3.96 mm pitch. Verify mechanical dimensions and electrical ratings against alternative manufacturers' offerings to ensure form-fit-function compatibility. Check for equivalent termination styles and contact materials to maintain performance standards.
