305-062-520-508

Edgeboard Connectors Overview

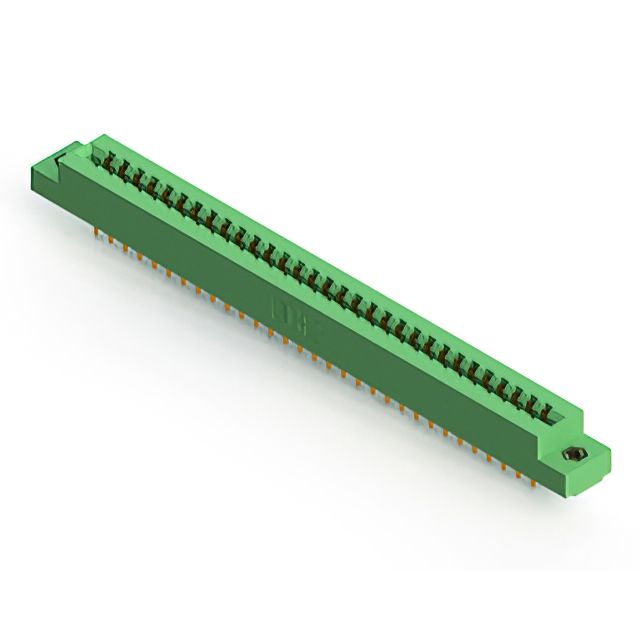

The EDAC Inc. 305-062-520-508 is a standard card edge connector from the 305 series, designed for vertical panel mounting applications. It features a dual female configuration with 62 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and is compatible with board thicknesses ranging from 1.37 mm to 1.78 mm. Contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. The housing is made of green thermoplastic polyester, providing durability within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure structural integration
• Dual row female contact configuration for high-density connections
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester insulation for thermal stability

Edgeboard Connectors Applications

• Medical interconnect solutions such as ventilators
• Ambulance communication and monitoring systems
• CPAP machine interface connections
• General industrial equipment panel interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, contact finish, and housing color specifications. Confirm that the intended application requires the 3.96 mm pitch and vertical panel mount style. Ensure compatibility with the target PCB card thickness limits before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current availability status.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount solution is required for double-sided edge cards. The 62-position capacity suits applications needing moderate-to-high I/O density. Verify that the 5 A current rating per contact aligns with circuit requirements. Consider the -40°C to +105°C operating range for environmental suitability. Ensure the mating card thickness falls within the specified 1.37 mm to 1.78 mm window for proper engagement.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which provides standard card edge connectivity options. The series includes various position counts and mounting styles to support diverse electronic assembly needs. As a standard product, it offers consistent electrical performance and mechanical reliability across the family. The 305 series is widely utilized in industries requiring robust interconnect solutions for modular hardware designs.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 Series Ordering Guide for confirmed substitute part numbers. Verify that any alternative maintains identical pitch, position count, and mounting orientation. Ensure material specifications and current ratings match or exceed original requirements.
