305-062-556-512

Edgeboard Connectors Overview

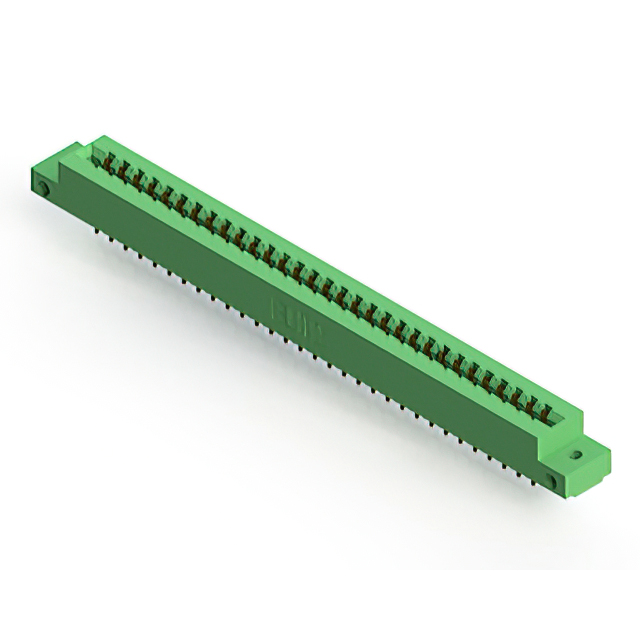

The EDAC Inc. 305-062-556-512 is a standard card edge connector from the 305 series, designed for dual-edge PCB insertion. It features 62 positions arranged in two rows with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator body. It supports panel mount installation at a vertical angle and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm).

Edgeboard Connectors Feature Summary

• Dual-row female configuration for double-sided card edge connections.
• Gold-plated copper alloy contacts ensure reliable signal transmission.
• Vertical panel mount design accommodates standard board thicknesses.

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects.
• Communication equipment backplanes.
• Test and measurement instrumentation modules.

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to confirm specific plating thickness and material variants. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure mechanical compatibility with existing panel cutouts and PCB stack-up requirements.

Edgeboard Connectors Selection Notes

Select this component when a 62-position dual-edge interface is required with a 3.96 mm pitch. Consider the vertical mounting style and thermoplastic insulation properties for environmental stability. Validate that the target PCB thickness aligns with the 1.57 mm specification for proper contact engagement.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series of standard card edge headers. The series offers various position counts and row configurations to support diverse electronic assembly needs. The 305-062 variant specifically addresses applications requiring higher density connections within a standard form factor.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series parts sharing identical pin counts and pitch dimensions. Verify mechanical footprint and electrical ratings match before substituting with alternative manufacturers' components.
