305-064-555-258

Edgeboard Connectors Overview

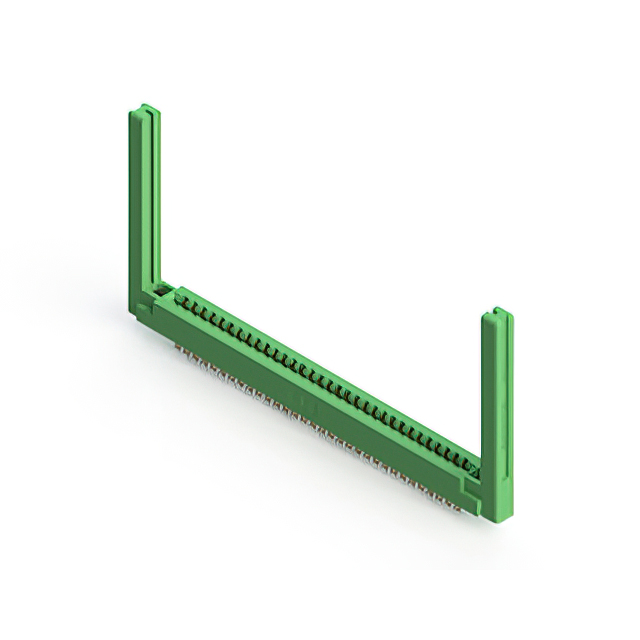

The EDAC Inc. 305-064-555-258 is a standard card edge connector designed for panel mounting applications. It features a dual female configuration with 64 positions arranged in two rows. The connector utilizes a contact spacing of 0.156 inches (3.96 mm) and accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts finished with gold plating, it ensures reliable electrical performance. The housing is made from thermoplastic material, providing structural integrity within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female edgeboard design for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic insulator body for durability
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required board thickness and contact type. Confirm that the dual female configuration matches the system design requirements. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure panel cutout dimensions align with the connector's mechanical specifications before procurement.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection with 64 positions is required for double-sided card edge interfaces. The 3.96 mm pitch suits applications where space efficiency is balanced with signal integrity needs. Consider the 5 A current rating and thermal stability up to 105°C for environments with moderate heat generation. Verify that the panel mount style fits the enclosure constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, a line of standard card edge connectors known for their reliability in harsh environments. The series offers various position counts and configurations to support diverse electronic assembly needs. The 305-064-555-258 specifically addresses applications requiring a substantial number of connections in a compact form factor.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants such as 305-064-521-258 for potential mechanical or contact variation differences. Ensure any substitute maintains the same 64-position count and 3.96 mm pitch to guarantee board compatibility.
