305-064-555-558

Edgeboard Connectors Overview

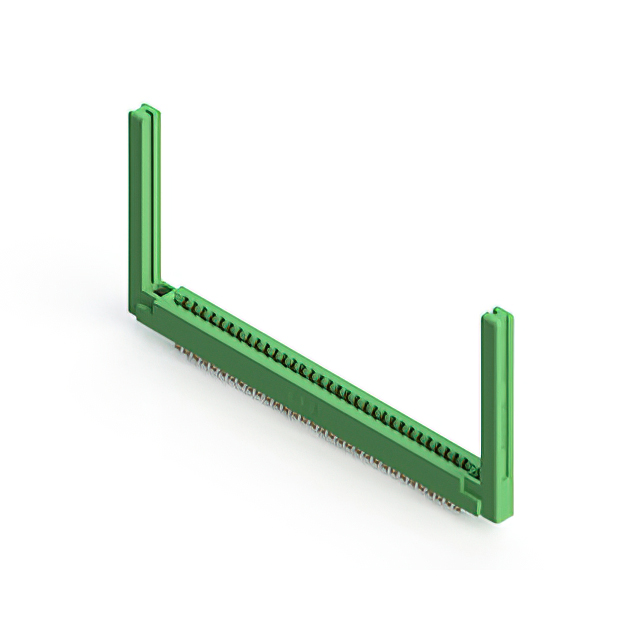

The EDAC Inc. 305-064-555-558 is a standard card edge connector from the 305 series, designed for dual-row board-to-board or backplane connections. It features 64 positions with a 3.96 mm pitch and supports a maximum operating temperature of +105°C. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and corrosion resistance. It is rated for 5 A current and includes a thermoplastic housing. The unit accommodates a board thickness of 1.57 mm and employs solder pin termination for secure panel mounting.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing high-density interconnect capability
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic housing material offering structural stability
• Solder pin termination method ensuring robust panel attachment

Edgeboard Connectors Applications

• Industrial control systems requiring durable edge connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation boards
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact termination style and mounting orientation. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the 3.96 mm pitch aligns with the design layout requirements. Cross-reference the RoHS compliance status with current regulatory standards for the intended market.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. The 64-position count suits applications needing moderate density without excessive footprint usage. Consider the 5 A current rating for power distribution needs within the system. Verify that the vertical mounting style fits the enclosure constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series, which specializes in standard card edge connectors. The series offers various position counts and mounting options to support diverse electronic assembly needs. The 305 series is widely recognized for its reliability in industrial and commercial environments, providing consistent performance across different operational temperatures.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 305 series variants with matching pitch and position counts. Verify mechanical dimensions and electrical ratings before swapping. Consult the manufacturer's cross-reference guide for approved alternative part numbers.
