305-066-520-504

Edgeboard Connectors Overview

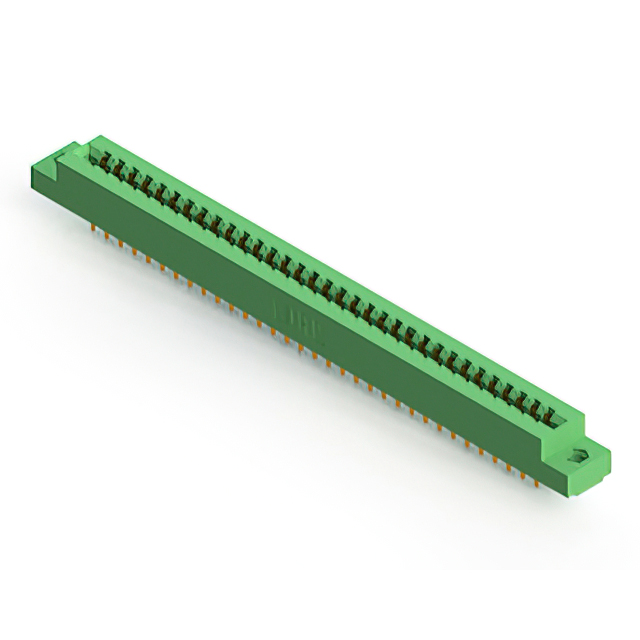

The EDAC Inc. 305-066-520-504 is a standard card edge connector from the 305 series, designed for vertical panel mounting applications. It features a dual female configuration with 66 positions and a 3.96 mm (0.156 inch) pitch. The contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. This component supports board thicknesses within the specified range and utilizes a solder pin termination method for secure PCB attachment.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for edgeboard connectivity
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical panel mount installation style
• Solder pin termination for secure circuit board attachment

Edgeboard Connectors Applications

• Industrial control systems requiring robust edge connections
• Telecommunications equipment interface modules
• Test and measurement instrument backplanes
• Automotive electronics sub-systems

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the ordering suffix matches the exact mechanical and electrical specifications needed for your application. Cross-reference the manufacturer's latest datasheet to validate current production status and any potential updates to the component's physical dimensions or material composition before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a high-density, dual-sided edge connection is required for panel-mounted assemblies. The 3.96 mm pitch offers a balance between signal density and spacing reliability. Consider the vertical orientation and panel mount style if space constraints dictate a perpendicular connection relative to the mating board. Verify that the target PCB thickness falls within the connector's accepted tolerance range for optimal contact engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, a line of standard card edge connectors known for their durability and consistent performance in demanding environments. The series typically includes various position counts and configurations to support diverse electronic interconnection needs. The 305-066-520-504 specifically addresses applications requiring a 66-position dual female interface with standardized mechanical dimensions.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Ensure that any replacement maintains identical pitch, position count, and mounting style to guarantee mechanical fit and electrical continuity without redesigning the host assembly.
