305-068-520-212

Edgeboard Connectors Overview

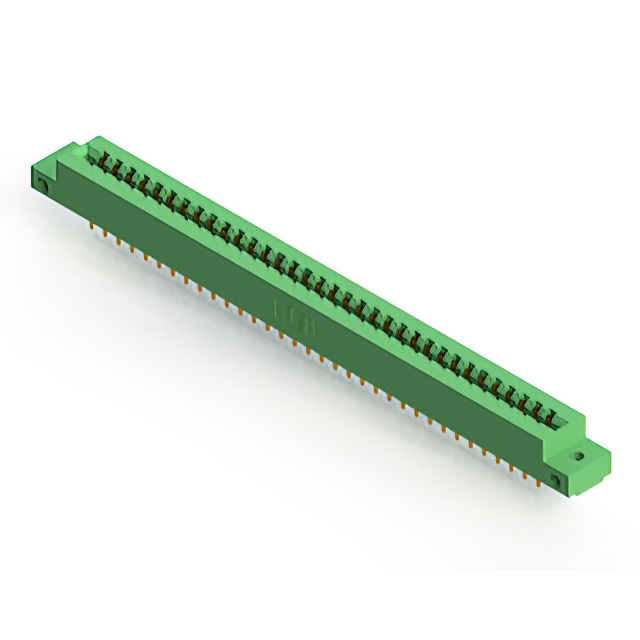

The EDAC Inc. 305-068-520-212 is a standard card edge connector from the 305 Series, designed for vertical panel mounting applications. It features a dual female contact configuration with 68 positions arranged in two rows. The component utilizes a 3.96 mm (0.156 inch) pitch between contacts and supports a PCB thickness of 1.57 mm. Electrical specifications include a continuous current rating of 5 A and an insulation voltage of 1800 VACrms. Contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure positioning
• Dual row female contact design for high-density board connections
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical panel mount style for robust structural integration

Edgeboard Connectors Applications

• Industrial control systems requiring high-voltage isolation
• Telecommunications equipment backplanes
• Automotive electronic modules
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm pin count, contact type, and insulator color. Ensure compatibility with the target PCB thickness and panel mounting requirements before procurement. Cross-reference the RoHS status and lead-free specifications with the latest datasheet to meet regulatory compliance standards for your region.

Edgeboard Connectors Selection Notes

Select this connector when a 3.96 mm pitch and 68-position capacity are required for vertical panel installation. The dual-row female configuration accommodates standard card edge profiles. Consider the 1800 VACrms insulation rating for applications demanding high dielectric strength. Verify that the housing material and contact plating meet the environmental conditions of the deployment site.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which specializes in card edge connectors with 3.96 mm spacing. The series offers various position counts and mounting styles to support diverse electronic assembly needs. The 305-068-520-212 variant specifically provides a 68-position dual-row interface suitable for robust industrial and commercial interconnect solutions.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official cross-reference guide for verified substitute part numbers. Ensure replacement components match the 3.96 mm pitch, 68-position count, and vertical panel mount orientation. Verify that electrical ratings and mechanical dimensions remain identical to maintain system integrity.
