305-072-500-512

Edgeboard Connectors Overview

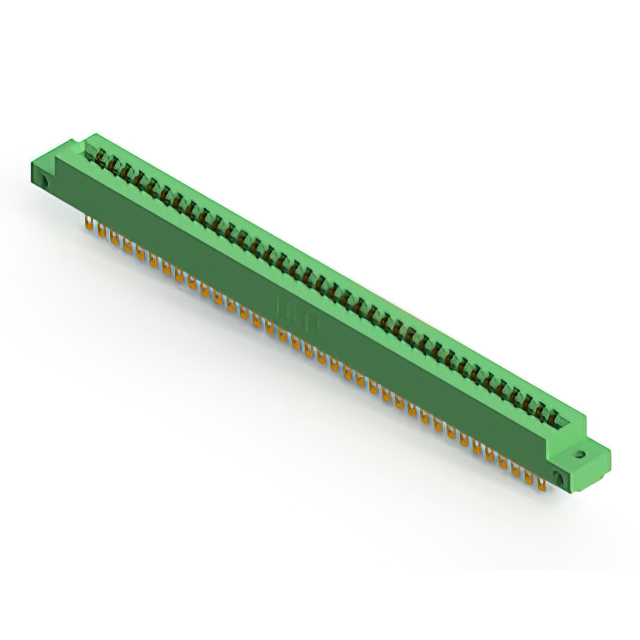

The EDAC Inc. 305-072-500-512 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 72 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. It supports a continuous current rating of 5 A and operates within a temperature range of -40°C to +105°C. The unit is intended for panel mount installation and accepts PCB thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for non-specified card edge boards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability and insulation
• Supports between-contact and in-contact polarizing keys

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronics modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm contact plating, housing color, and termination type. Ensure the selected variant matches the required PCB thickness and mounting style. Confirm RoHS compliance status if environmental regulations apply to the final assembly. Cross-reference the manufacturer part number with distributor catalogs to avoid confusion with similar series components.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection with 72 positions is required. The 3.96 mm pitch accommodates standard board layouts. Verify that the application environment stays within the -40°C to +105°C operating range. Ensure the mating card edge thickness falls within the specified 1.37 mm to 1.78 mm tolerance. Consider the 5 A current rating for power distribution needs.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various configurations for card edge applications. The series includes single and dual-edge options with different position counts. The 305-072-500-512 specifically addresses high-pin-count requirements. It shares common design principles with other parts in the family, such as consistent pitch and material standards.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes. Alternative part numbers may vary by position count or termination method. Verify dimensional compatibility before replacing. Check for equivalent current ratings and temperature specifications in potential replacements.
