305-074-555-503

Edgeboard Connectors Overview

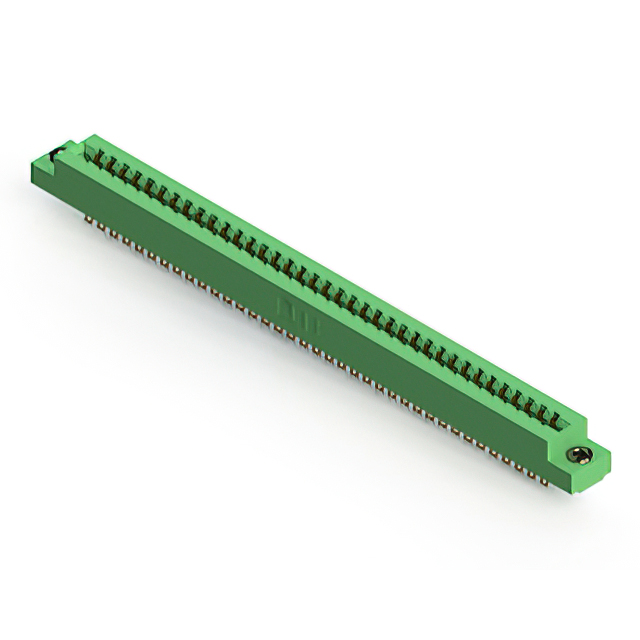

The EDAC Inc. 305-074-555-503 is a dual-edge female card edge connector designed for vertical panel mounting. It features 74 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.140 inches (3.56 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts finished with gold plating, it utilizes a low-profile thermoplastic insulator body. The component operates within a temperature range of -40°C to +105°C and supports a current rating of 5 A per contact.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified board types
• Low-profile insulator body design
• Gold-plated copper alloy contacts for reliable conductivity
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Industrial control systems requiring robust edge connections
• Telecommunications equipment interface modules
• Test and measurement instrumentation backplanes
• Automotive electronic control unit interconnects

Edgeboard Connectors Procurement Notes

Verify the specific pin count and spacing against the target PCB layout before ordering. Confirm that the receiving board thickness aligns with the 0.062-inch nominal requirement for proper mechanical engagement. Ensure the selected variant matches the required operating temperature range and current capacity for the intended application environment. Cross-reference the manufacturer's latest datasheet to confirm compliance with RoHS3 standards and availability status.

Edgeboard Connectors Selection Notes

Select this model when a high-density dual-edge connection is required for vertical panel integration. The 0.156-inch pitch allows for substantial signal routing compared to finer pitches. Consider the 5 A current rating for power distribution needs alongside signal lines. The green color coding aids in visual identification during assembly. Verify compatibility with existing tooling for panel-mounted installations.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles to accommodate diverse board edge requirements. The 305 series is characterized by its durable construction and consistent electrical performance across different industrial applications. This specific part number represents a mid-range position count within the broader product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series parts with matching 74-position counts and 0.156-inch spacing. Verify mechanical dimensions and mounting hole patterns to ensure interchangeability. Alternative manufacturers may offer similar specifications but require validation of contact geometry and insulation material properties.
