307-018-420-201

Edgeboard Connectors Overview

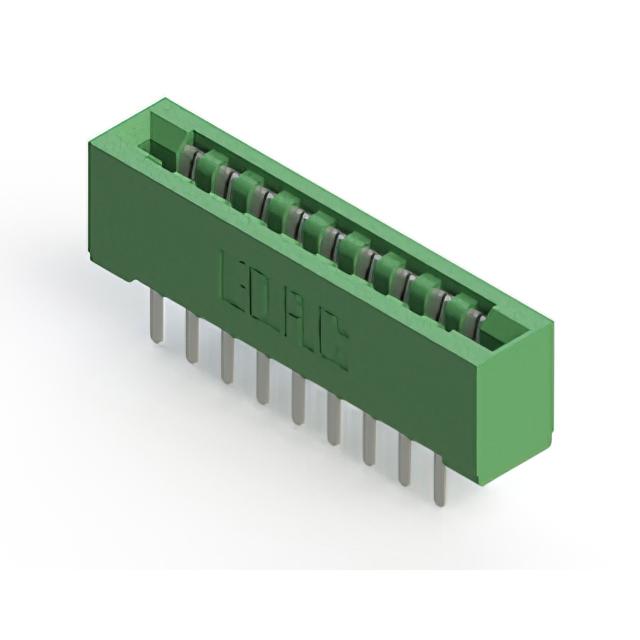

The EDAC Inc. 307-018-420-201 is a standard card edge connector receptacle featuring 18 positions with a 3.96 mm pitch. Designed for dual-edge mating, it accommodates a board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts rated for 5 A current and offers panel mount installation in a right-angle configuration. It operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure card insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic housing provides structural stability
• Right-angle panel mount facilitates space-efficient integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Computing hardware module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating, orientation, and termination specifications. Confirm that the requested part matches the required pitch and board thickness parameters. Ensure compliance with applicable environmental regulations such as RoHS before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with a 3.96 mm pitch is required. The right-angle panel mount style suits applications needing perpendicular signal routing. Verify that the 1.57 mm board thickness compatibility aligns with the target PCB design constraints and mechanical layout requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and mounting styles. This specific model provides a robust solution for high-reliability electronic interconnections requiring durable metal-to-metal contact interfaces.

Edgeboard Connectors Replacement Considerations

Cross-reference alternative part numbers from the same EDAC 307 series family. Ensure substitute components match the 18-position count, 3.96 mm pitch, and dual-edge configuration. Verify identical electrical ratings and mechanical dimensions for direct interchangeability.
