307-019-554-101

Edgeboard Connectors Overview

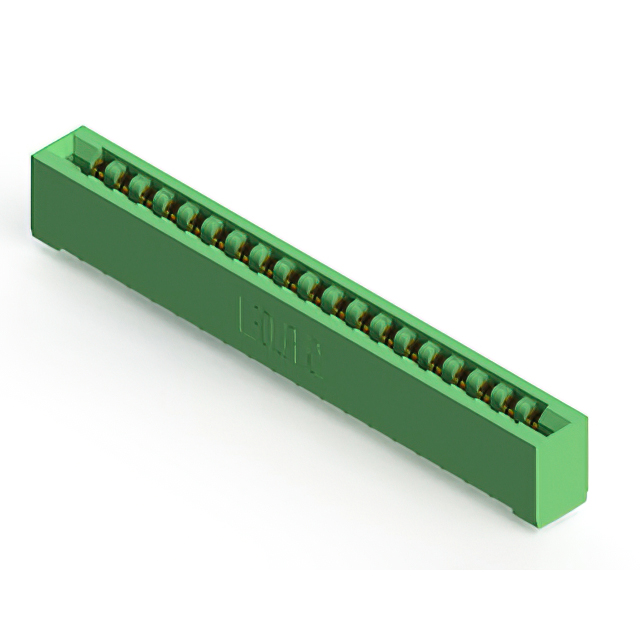

The EDAC Inc. 307-019-554-101 is a standard card edge connector featuring 38 positions in a dual female configuration. It utilizes a 0.156-inch (3.96 mm) contact spacing with a 0.200-inch (5.08 mm) row spacing. Designed for non-specified dual-edge PCBs, it accommodates board thicknesses ranging from 0.054 to 0.070 inches (1.37 to 1.78 mm). The connector employs copper alloy contacts with gold plating and a green thermoplastic insulator body.

Edgeboard Connectors Feature Summary

• Dual-edge female termination design for secure connection to double-sided circuit boards
• Low-profile insulator body construction for compact panel mounting applications
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring high-density interconnects
• Industrial control systems utilizing double-sided printed circuit boards
• Communication equipment housing modular interface cards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 307/357 series ordering guide to confirm exact pin count, termination style, and flange characteristics. Ensure compatibility with the target PCB thickness range of 0.054 to 0.070 inches before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector is required for double-sided edge-board applications. Confirm that the system design supports the specified 0.156-inch pitch and that the enclosure allows for the necessary panel cutout dimensions associated with the 38-position form factor.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and termination options, providing a standardized solution for connecting edge-board modules to backplanes or chassis panels in rugged environments.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 307/357 Ordering Guide for direct substitutes. Verify that alternative parts match the 38-position count, dual female configuration, and 0.156-inch pitch specifications to maintain mechanical and electrical compatibility.
