307-044-459-108

Edgeboard Connectors Overview

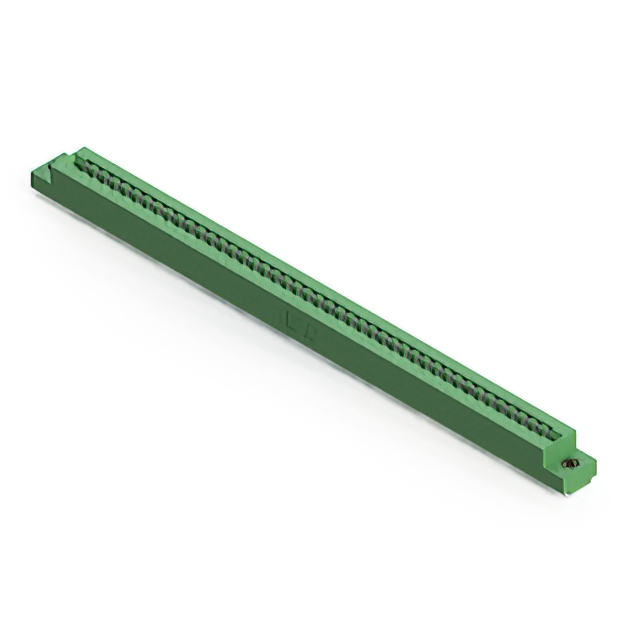

The EDAC Inc. 307-044-459-108 is a standard card edge connector from the 307 series, designed for single-row applications. It features 44 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.200 inches (5.08 mm). The component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes tin-plated copper alloy contacts and a green thermoplastic insulator body. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Low profile insulator body design suitable for space-constrained installations
• Accepts nominal 0.062 inch (1.57 mm) thick printed circuit boards
• Tin-plated copper alloy contacts ensure reliable electrical connectivity

Edgeboard Connectors Applications

• Single-sided PCB interconnection systems
• Industrial control panel mounting
• Electronic module interface connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm plating type and termination style. Ensure the target application supports single-edge female connectors. Confirm that the board thickness falls within the specified tolerance range for proper contact engagement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row configuration is required for 44-position interfaces. The 3.96 mm pitch accommodates standard board layouts while maintaining robust mechanical stability. Consider the tin plating option for cost-effective solutions where high corrosion resistance is not the primary constraint. Verify that the straight mounting style aligns with the enclosure design requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 307 series of standard card edge connectors. The series provides various position counts and row configurations to support diverse electronic assembly needs. The 307-044-459-108 specifically addresses single-row applications requiring 44 connection points. It complements other variants in the lineup that offer dual-row or different termination methods.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include EDAC part numbers such as 307-044-459-202, which shares the same physical dimensions and position count but differs in contact plating specifications.
