310-87-104-01-640101

Headers, Receptacles, Female Sockets Overview

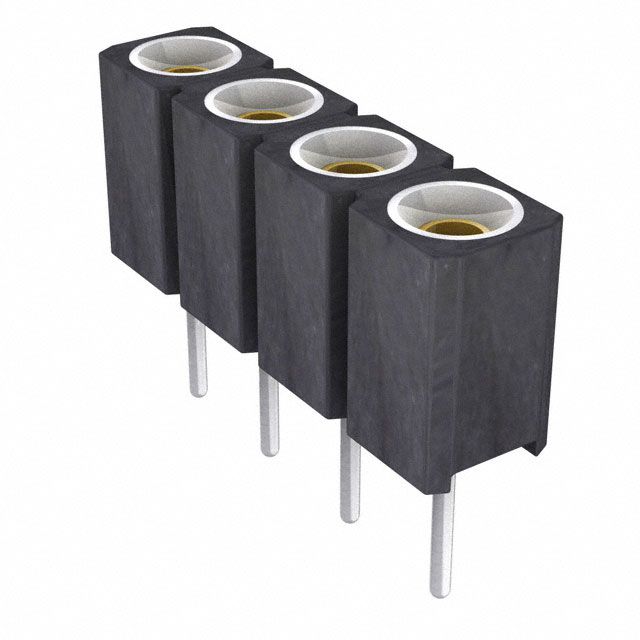

The Preci-Dip 310-87-104-01-640101 is a single-row SIL socket connector featuring four contacts with a 2.54 mm pitch. Designed for through-hole mounting, it utilizes solder tails for secure PCB attachment. The unit supports a current rating of 3A and voltage ratings of 100 V AC or 150 V DC. Constructed with fiberglass-reinforced PCT insulation and brass/beryllium copper contacts, it operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Provides reliable mating compatibility with corresponding Preci-Dip male pin headers
• Features gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Utilizes UL94 V-0 rated fiberglass-reinforced PCT insulation material

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• General electronic circuit assembly
• Industrial control module interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Preci-Dip documentation to ensure correct contact plating and termination style. Confirm that the required contact count matches the four-position configuration. Cross-reference the thermal and electrical ratings with system requirements before finalizing procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a straight, through-hole female socket is required for low-current signal or power transmission. Ensure the mating header aligns with the 2.54 mm pitch specification. Consider the physical height constraints relative to the 4.2 mm insulation profile during mechanical design integration.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 310 series of rectangular connectors. It serves as a receptacle counterpart to male pin headers, forming standardized connection pairs. The series offers various contact counts and termination options for diverse electronic packaging needs.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 4-position, 2.54 mm pitch through-hole sockets from manufacturers such as Samtec or Molex, provided they match the critical dimensions and electrical ratings.
