310-87-104-01-666101

Headers, Receptacles, Female Sockets Overview

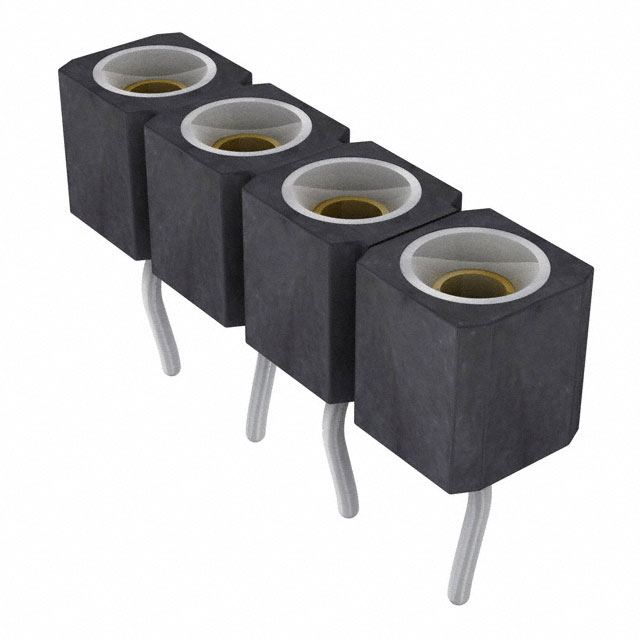

The Preci-Dip 310-87-104-01-666101 is a 4-position rectangular female socket connector designed for board-to-board applications. It features a 2.54mm (0.100 inch) pitch and utilizes through-hole termination for secure PCB mounting. The contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. Rated for 3A current and 150V DC, the unit operates within a temperature range of -55°C to +125°C. The housing is made of black thermoplastic with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Gold-plated contact surfaces provide corrosion resistance and stable electrical performance
• Through-hole termination ensures robust mechanical fixation on printed circuit boards
• High-temperature rated insulation supports operation in demanding thermal environments

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• Industrial control module interfaces
• Consumer electronics internal connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific ordering suffix matches the required pin configuration and plating thickness. Confirm that the through-hole footprint aligns with the target PCB design rules. Ensure the operating voltage does not exceed the 150V DC rating. Check compatibility with mating header connectors regarding pitch and row alignment.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, high-reliability female socket is required for direct board stacking. The 2.54mm pitch offers standard spacing compatibility with common header series. Consider the gold finish if long-term oxidation resistance is critical for the application environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 310 series, which specializes in single-row socket connectors. The series is characterized by its compact profile and versatile termination options. It serves as a standard interface solution for connecting peripheral modules to main processing boards in various electronic assemblies.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 4-position, 2.54mm pitch sockets from the same manufacturer series, such as 310-87-104-01-640101, provided the termination style and contact material specifications remain consistent.
