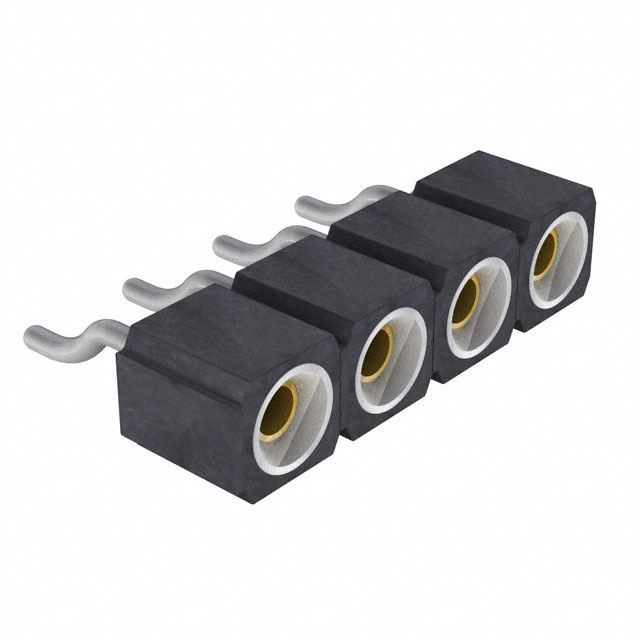

310-87-104-41-205101

$0.31

Description：CONN SOCKET 4P 0.1 GOLD SMD R/A
Series：310
Mfr：Preci-Dip
Package：Bulk

SKU:9ab78acf7abb Category: Headers, Receptacles, Female Sockets Brand: Preci-Dip

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

310-87-104-41-205101 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN SOCKET 4P 0.1 GOLD SMD R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 310-87-104-41-205101

Description：CONN SOCKET 4P 0.1 GOLD SMD R/A
Series：310
Mfr：Preci-Dip
Package：Bulk
Connector Type：Socket
Contact Type：Female Socket
Style：Board to Board
Number of Positions：4
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Insulation Color：Black
Insulation Height：0.100" (2.54mm)
Contact Length - Post：-
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 310-87-104-41-205101

310-87-104-41-205101

Headers, Receptacles, Female Sockets Overview

The Preci-Dip 310-87-104-41-205101 is a 4-position socket connector from the 310 series, designed for board-to-board applications. It features a 0.100" (2.54mm) pitch and utilizes surface mount right-angle termination. The contacts are made of beryllium copper with gold plating on the mating interface and tin plating on the tail. Rated for 3A current, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black glass-reinforced PCT polyester with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

Surface mount right-angle design for compact PCB integration
Gold-plated beryllium copper contacts ensure reliable signal transmission
Push-pull locking mechanism provides secure connection retention

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnects in electronic assemblies
High-density circuit board connections requiring right-angle routing
Industrial equipment internal wiring harnesses

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Preci-Dip documentation to confirm exact plating thickness and packaging configuration. Ensure compatibility with automated pick-and-place equipment due to the surface mount right-angle form factor. Cross-reference the full part number to distinguish between variations in contact length or insulation height within the 310 series family.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle socket is required for surface mounting. The 4-position count suits small signal or power distribution tasks. Verify that the 0.100" pitch matches the mating header. Consider the push-pull locking style if vibration resistance is necessary compared to standard friction-fit connectors.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 310 series of rectangular connectors. The series offers various configurations including through-hole and surface mount options with different pin counts. The 310-87 variant specifically denotes the socket type with right-angle orientation, distinguishing it from vertical headers or straight sockets in the broader product line.
