333-009-558-608

Edgeboard Connectors Overview

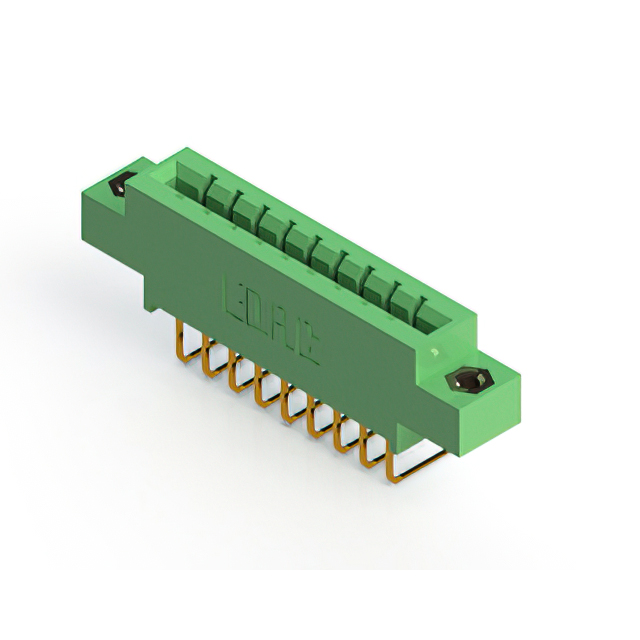

The EDAC Inc. 333-009-558-608 is a standard card edge connector from the 333 series, designed for single-row applications. It features nine positions with a 3.96 mm (0.156 inch) contact pitch. The component utilizes copper alloy contacts with gold plating and a thermoplastic polyester housing. Rated for 3 A current, it supports board thicknesses between 1.37 mm and 1.78 mm. Operating temperatures range from -40°C to +105°C, with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-row female configuration with gold-plated copper alloy contacts
• Thermoplastic polyester housing for thermal stability
• Right-angle mounting orientation for PCB integration

Edgeboard Connectors Applications

• Single-sided circuit board interconnections
• Industrial control module interfaces
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm exact pin count and termination style. Ensure the target PCB thickness falls within the specified 1.37 mm to 1.78 mm range for proper contact engagement. Confirm RoHS compliance status through official documentation before procurement.

Edgeboard Connectors Selection Notes

Select this model for applications requiring a single-row interface with a 3.96 mm pitch. The right-angle design facilitates space-constrained layouts. Verify that the required current rating of 3 A meets system demands and that the operating temperature range aligns with environmental conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 333 series, which provides standard card edge connectors with a 3.96 mm pitch. The series offers various position counts and termination options, serving as a reliable interconnection solution for general-purpose electronic assemblies requiring durable board-to-board or board-to-backplane connections.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC datasheet for direct substitute part numbers within the 333 series. Verify mechanical dimensions and electrical ratings match before substituting. Generic equivalents may not guarantee compatible contact geometry or material specifications.
