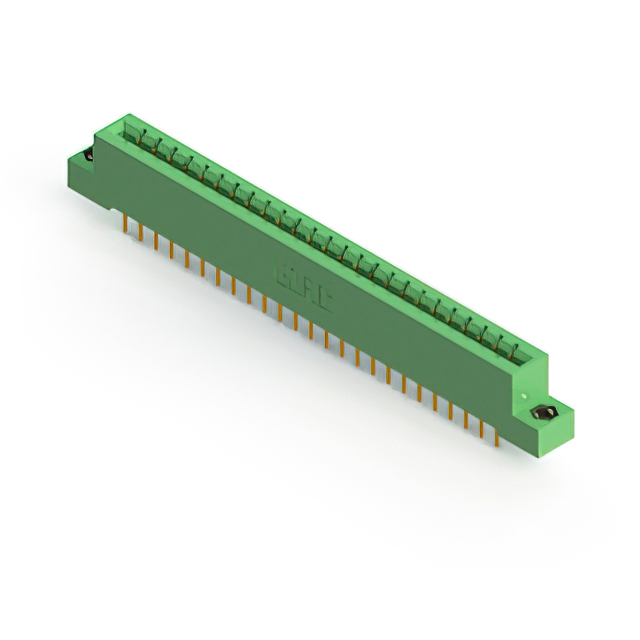

333-050-541-208

$7.88

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：333
Mfr：EDAC Inc.
Package：Box

SKU:00e6bd87face Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

333-050-541-208 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 50POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 333-050-541-208

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：333
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 333-050-541-208

333-050-541-208

Edgeboard Connectors Overview

The EDAC Inc. 333-050-541-208 is a standard card edge connector featuring 50 positions with a 3.96 mm pitch. It utilizes a dual-edge female contact configuration and gold plating for reliable signal transmission. Designed for through-hole vertical mounting, the unit accommodates PCBs with a thickness of 1.57 mm. The housing is constructed from thermoplastic polyester, providing structural integrity in green coloration. Rated for 3 A current, it ensures stable electrical performance across its contact array.

Edgeboard Connectors Feature Summary

Dual-edge female contact design for secure board insertion
Gold-plated copper alloy contacts ensure corrosion resistance
Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific position count and pitch against project requirements before ordering. Confirm that the dual-edge configuration matches the target PCB layout. Ensure the through-hole mounting style aligns with the assembly process capabilities. Check RoHS compliance status if environmental regulations apply to the final product deployment.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection with a 3.96 mm pitch is required. The dual-edge design supports robust mechanical retention compared to single-edge variants. Consider the 3 A current rating for power distribution needs within the circuit. Verify compatibility with the intended PCB thickness of 1.57 mm during the mechanical integration phase.

Edgeboard Connectors Part Context

This part belongs to the EDAC 333 series of standard card edge connectors. The series offers various position counts and mounting options for diverse electronic applications. EDAC specializes in high-reliability interconnect solutions for industrial and commercial sectors. The 333 series is known for consistent performance in demanding environments.
