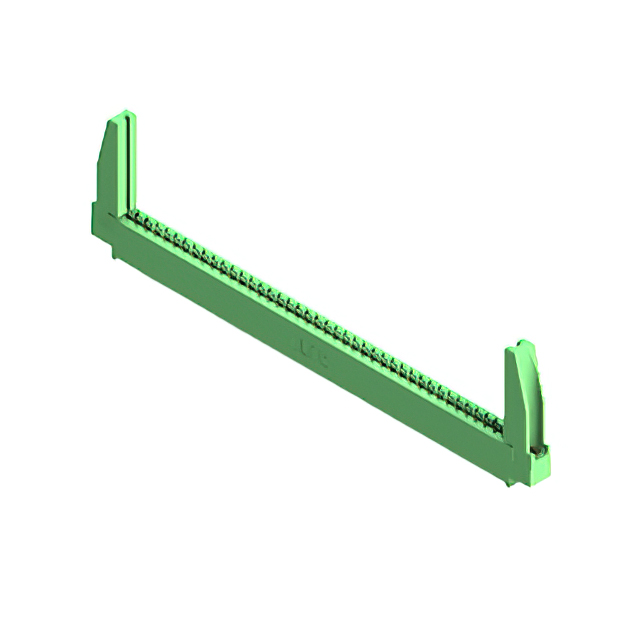

337-041-542-678

$10.21

Description：CONN EDGE SGL FMALE 41POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box

SKU:742e1b0f8757 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

337-041-542-678 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 41POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 337-041-542-678

Description：CONN EDGE SGL FMALE 41POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：41
Number of Positions：41
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.156" (3.96mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 337-041-542-678

337-041-542-678

Edgeboard Connectors Overview

The EDAC Inc. part number 337-041-542-678 is a standard card edge connector from the 337 series, designed for signal communication and power connection between mother, daughter, and extender boards. It features 41 positions with a single row configuration and a pitch of 3.96 mm (0.156 inches). The connector utilizes through-hole mounting with a vertical orientation and wire wrap termination type. Contact plating is gold over copper alloy, housed in green thermoplastic polyester. It supports a board thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Single-row female connector design for non-specified single-edge cards
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic polyester housing provides structural stability
Vertical through-hole mounting with wire wrap termination

Edgeboard Connectors Applications

Signal communication between motherboard and daughterboard
Power connection in modular electronic systems
Extender board interconnects in industrial equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, contact plating, and termination style match project requirements. Ensure compatibility with the target PCB board thickness and mounting orientation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 41-position interface with 3.96 mm pitch is required. Confirm that the wire wrap termination method aligns with the assembly process and that the vertical mounting style fits the enclosure constraints. Verify thermal ratings for the operating environment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 337 series, which offers quality-engineered solutions for interconnecting mother, daughter, and extender boards. The series is characterized by its robust construction and suitability for general-purpose signal and power applications in various electronic assemblies.
