342-014-560-204

Edgeboard Connectors Overview

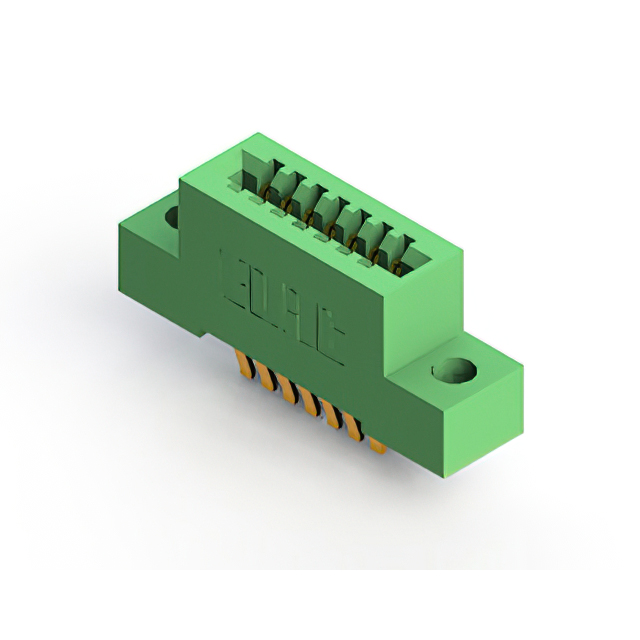

The EDAC Inc. model 342-014-560-204 is a standard card edge connector featuring 14 positions with a 2.54 mm pitch. It utilizes dual female contacts plated with gold and employs a solder lug termination type. Designed for panel mount installation at a vertical angle, the unit accommodates a board thickness of 1.57 mm. The housing is constructed from thermoplastic polyester, providing an insulation resistance of 5 GOhms. The component carries a current rating of 3 A and operates within a temperature range of -40 C to +105 C.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card edge engagement
• Gold-plated copper alloy contacts ensure reliable electrical conductivity
• Thermoplastic polyester insulator supports high-temperature operation up to 105 C
• Panel mount vertical design facilitates structured system integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust signal transmission
• Communication equipment utilizing standardized card interfaces
• Automotive electronics demanding reliable vertical connectivity
• Medical devices necessitating stable electrical connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 14-position count and 2.54 mm pitch before procurement. Confirm the solder lug termination style aligns with the target PCB layout. Ensure the panel mount vertical orientation fits the mechanical constraints of the enclosure. Check that the thermoplastic polyester material meets environmental requirements for the intended operating temperature range.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 2.54 mm spacing is required. The 3 A current rating suits moderate power applications. The vertical panel mount style is ideal for chassis-based installations. Consider the 1.57 mm board thickness compatibility during mechanical design. Verify that the gold plating meets corrosion resistance standards for the deployment environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 342 series of standard card edge connectors. The series offers various position counts and termination options. The 342-014-560-204 specifically provides a dual-edge female connection. It shares common design principles with other parts in the family regarding material selection and mounting styles.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the EDAC 342 series for alternative position counts. Verify equivalent specifications from other manufacturers if supply chain issues arise. Ensure substitute components match the 2.54 mm pitch and vertical mounting requirements.
