342-040-541-107

Edgeboard Connectors Overview

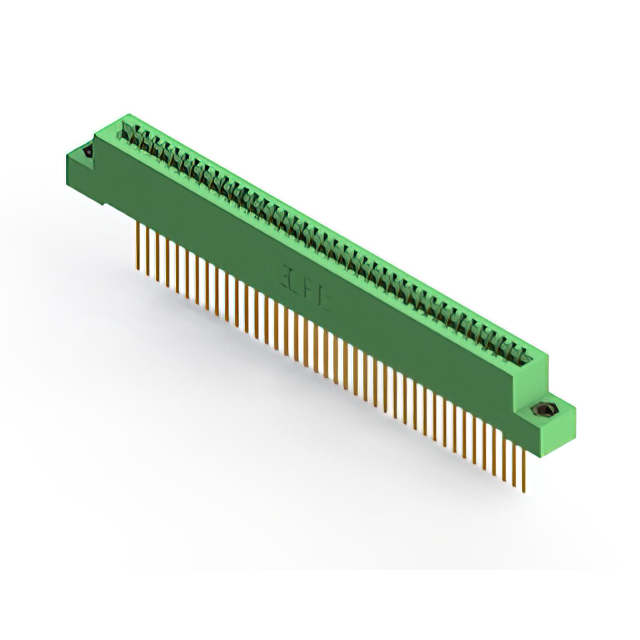

The EDAC Inc. 342-040-541-107 is a standard single-row card edge connector socket designed for through-hole mounting. It features 40 positions with a 2.54 mm (0.100 inch) pitch and supports a maximum board thickness of 1.57 mm. The contacts are constructed from copper alloy with gold plating, rated for 3 A current. The housing utilizes thermoplastic polyester, offering an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single female contact configuration for card edge insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester housing provides structural stability
• Wire wrap termination style facilitates circuit board integration

Edgeboard Connectors Applications

• General electronic interconnect systems
• Industrial control modules
• Communication equipment backplanes
• Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm physical dimensions and terminal type. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure the selected variant matches the required board thickness and mounting orientation specifications for the target application design.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 40 positions is required. The 2.54 mm pitch aligns with standard PCB layouts. Verify that the wire wrap termination method is compatible with the assembly process. Consider the vertical mounting angle and through-hole installation requirements during mechanical design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 342 series of standard card edge connectors. The series offers various position counts and pitch options. The 342 series is characterized by its robust construction and suitability for high-reliability applications across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 342 series variants for different position counts. Check for identical specifications in competitor catalogs before substitution. Verify that any alternative maintains the same pitch, board thickness tolerance, and termination style.
