Edgeboard Connectors Overview

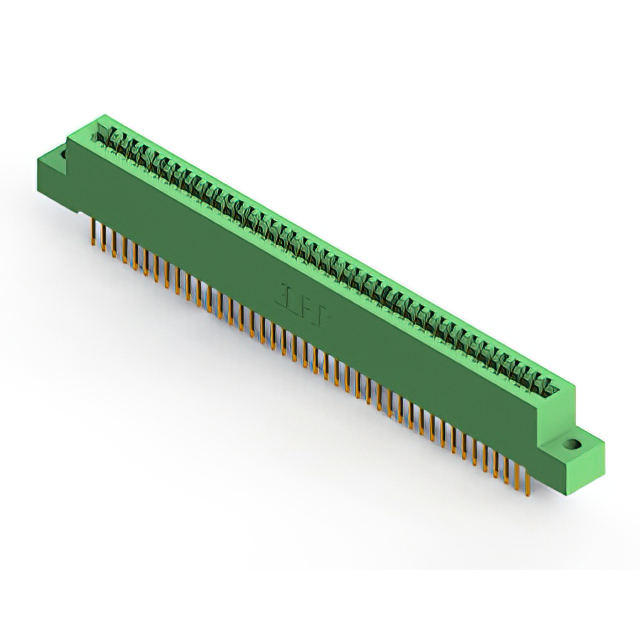

The EDAC Inc. 342-084-523-202 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. This component features 84 contacts arranged in two rows, providing a dual female interface suitable for high-density applications. The connector utilizes a straight orientation with a 0.1-inch pitch between contact points to ensure precise alignment with mating cards. Termination is achieved through solder terminals, which secure the connection to the printed circuit board. The insulator material is green, offering visual identification and electrical isolation. The design includes a hole diameter of 0.128 inches, accommodating specific mounting requirements. This receptacle type is engineered for durability and consistent performance in industrial environments.

Edgeboard Connectors Feature Summary

• Dual row female configuration for enhanced contact density
• Straight orientation facilitates compact board layout integration
• Solder terminal termination ensures robust mechanical attachment
• Green insulator provides clear visual differentiation

Edgeboard Connectors Applications

• Industrial control systems requiring stable data interfaces
• Telecommunications equipment utilizing card edge modules
• Test and measurement devices needing reliable connectivity
• Automotive electronics with space-constrained designs

Edgeboard Connectors Procurement Notes

Verify that the ordered part matches the exact EDAC Inc. 342-084-523-202 designation to ensure compatibility with existing board layouts. Confirm that the solder termination method aligns with your assembly process capabilities. Check for any specific environmental ratings or RoHS compliance documentation required for your project's regulatory standards before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row female interface with a 0.1-inch pitch is required for card edge applications. Ensure the PCB footprint accommodates the specified 0.128-inch hole diameter for proper mounting. Consider the straight orientation relative to available board space and neighboring components. Validate that the soldering temperature profile supports the connector's thermal specifications during assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC Inc. standard card edge connector series, specifically designed for edgeboard applications. It serves as a receptacle for mating cards in various electronic systems. The product line emphasizes reliability and standardized dimensions to facilitate interchangeability within compatible hardware ecosystems. EDAC Inc. manufactures these connectors to meet rigorous industry standards for electronic interconnect solutions.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC Inc. models with identical 84-contact dual female configurations and 0.1-inch pitch. Verify that alternative parts maintain the same straight orientation and solder termination style. Ensure physical dimensions and mounting hole specifications match exactly to avoid PCB redesign requirements.
