342-094-556-208

Edgeboard Connectors Overview

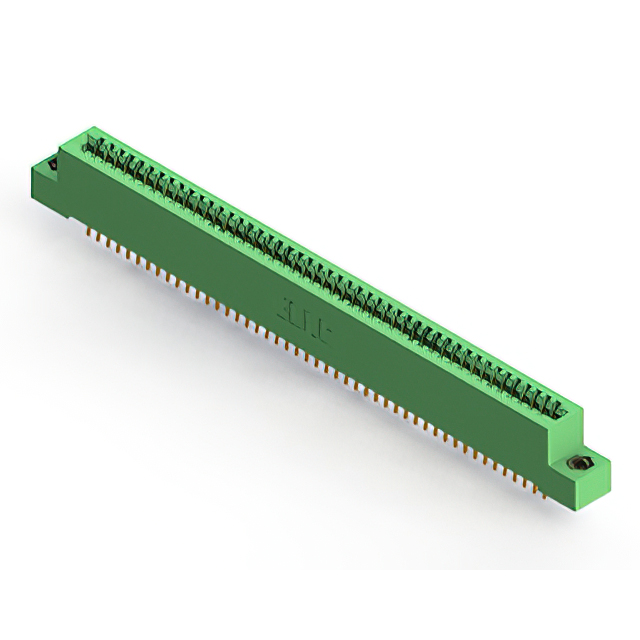

The EDAC Inc. part number 342-094-556-208 is a standard card edge connector from the 342 series, designed for dual-edge board applications. It features 94 positions with a 0.100 inch (2.54 mm) pitch and utilizes female contacts. The connector employs gold plating on copper alloy terminals and is housed in green thermoplastic polyester insulation. It supports straddle mount installation with vertical orientation and solder pin termination. The unit is rated for 3 A current and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy terminals ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability up to 105°C

Edgeboard Connectors Applications

• High-density electronic circuit board interconnections
• Industrial control system backplanes
• Telecommunications equipment modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact flange and mounting characteristics. Ensure compatibility with target PCB thickness and guide rail systems. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-edge interface is required. The 0.100-inch pitch accommodates standard board layouts. Verify that the straddle mount style aligns with the mechanical design constraints of the enclosure. Ensure the 3 A current rating meets the electrical load requirements of the application.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 342 series, which specializes in deep card edge connectors. The series offers various position counts and mounting options. The 342-094 variant provides a high-density solution suitable for complex digital and analog signal routing in demanding environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitutes. Generic equivalents may not match the precise flange dimensions or contact retention forces specified for the 342 series.
