345-011-500-403

Edgeboard Connectors Overview

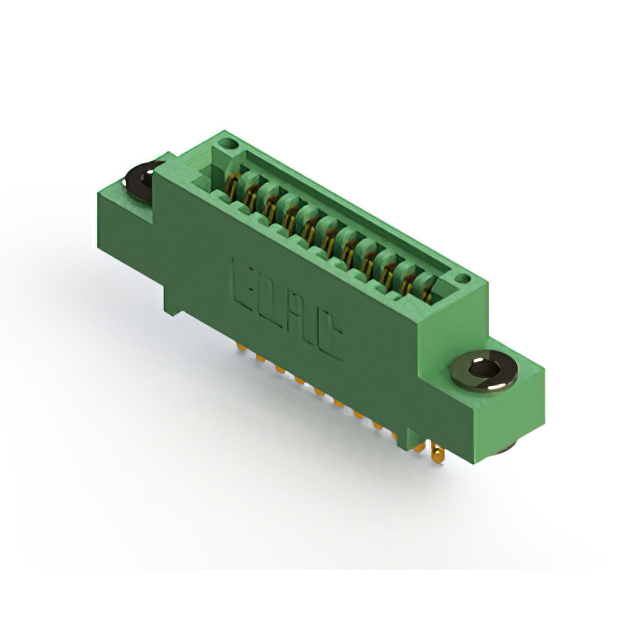

The EDAC Inc. 345-011-500-403 is a standard card edge connector socket from the 345 series, featuring 11 positions in a single row with a 2.54 mm (0.100 inch) pitch. Designed for through-hole vertical mounting, it utilizes copper alloy contacts with gold plating and wire wrap termination. The green thermoplastic polyester housing supports PCB thicknesses of 1.57 mm, ensuring reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

• Single-row female configuration for non-specified single-edge cards
• Wire wrap termination method for secure circuit board attachment
• Gold-plated copper alloy contacts to ensure conductivity
• Vertical through-hole installation style

Edgeboard Connectors Applications

• Electronic module interconnection systems
• Industrial control panel assembly
• General-purpose printed circuit board expansion

Edgeboard Connectors Procurement Notes

Verify the specific contact termination type against project requirements, as this model specifies wire wrap rather than solder pin or surface mount options. Confirm that the target PCB layout accommodates the vertical orientation and through-hole footprint dimensions. Ensure the mating card edge thickness falls within the specified operational range to maintain proper contact engagement and electrical reliability during operation.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row interface is required for boards utilizing wire wrap technology. It serves as a suitable alternative to solder-pin variants if the manufacturing process relies on wire wrapping. Consider the 11-position count and 2.54 mm spacing to match existing system architecture constraints without requiring custom adapter solutions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which provides a comprehensive range of card edge connectors for various industrial and commercial applications. The series offers multiple position counts and termination styles, allowing engineers to standardize on a single product family while adapting to different mechanical and electrical interface needs across diverse equipment designs.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other 11-position, 2.54 mm pitch sockets from the same manufacturer series, such as the 345-011-500-402, provided the termination method matches the design intent. Verify that any replacement maintains the same vertical mounting angle and housing material specifications to ensure mechanical compatibility.
