345-033-541-402

Edgeboard Connectors Overview

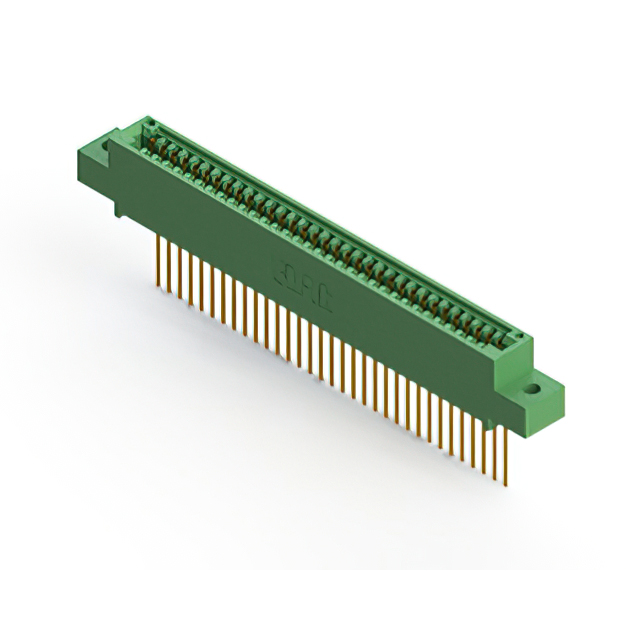

The EDAC Inc. 345-033-541-402 is a card edge connector designed for single-edge board applications. It features 33 positions with a female contact configuration and a 0.100-inch (2.54mm) pitch. The connector utilizes wire wrap termination and gold-plated contacts to ensure reliable signal transmission. Constructed with a green thermoplastic polyester insulator, it supports through-hole mounting. The component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Single-edge female connector design for non-specified card types
• Gold-plated copper alloy contacts for enhanced conductivity
• Wire wrap termination method for secure circuit attachment
• Green thermoplastic polyester insulator housing

Edgeboard Connectors Applications

• General-purpose electronic interconnect systems
• Industrial control panel wiring
• Consumer electronics assembly
• Telecommunications equipment integration

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the single-edge configuration and wire wrap termination align with your manufacturing processes. Check for RoHS3 compliance if environmental regulations apply to your production line. Confirm lead times and availability directly with authorized distributors or the manufacturer.

Edgeboard Connectors Selection Notes

Select this component when a single-row, female connector is required for non-specified card edges. The 0.100-inch pitch suits standard PCB layouts. Consider the wire wrap termination if soldering is not preferred. Evaluate the operating temperature range and material properties against environmental conditions. Compare with other series if higher density or different termination methods are needed.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 345 series, which offers a range of card edge solutions. The series provides various position counts and termination options. The 345-033-541-402 specifically addresses needs for moderate pin counts in single-edge applications. It complements other connectors in the lineup by offering a standardized form factor and reliable performance characteristics.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 345 series parts with matching pin counts and termination styles. Verify dimensional compatibility and electrical ratings before substitution. Cross-reference with distributor databases for equivalent components from other manufacturers if necessary.
