345-058-500-458

Edgeboard Connectors Overview

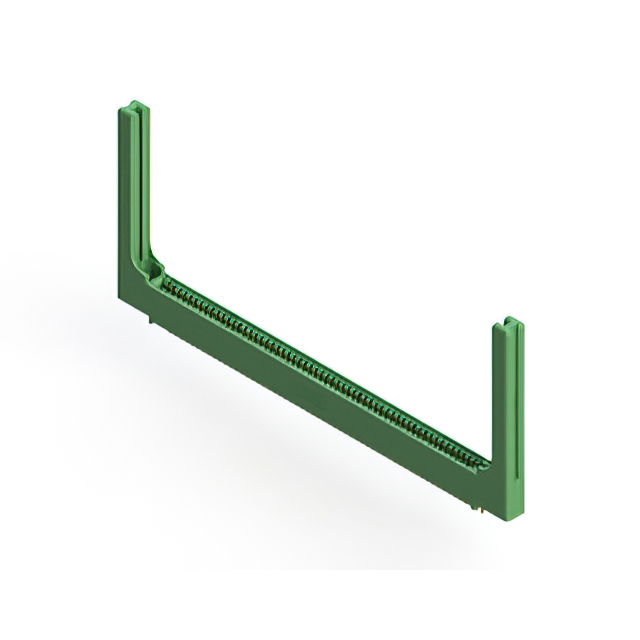

The EDAC Inc. 345-058-500-458 is a standard card edge connector from the 345 series, designed for single-row applications with 58 positions. It features a 2.54 mm (0.100 inch) pitch and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The connector is engineered for surface mount installation and includes a green thermoplastic polyester insulator. It supports a maximum operating temperature of +105°C and a minimum of -40°C, with an insulation resistance of 5 GOhms and a current rating of 3 A.

Edgeboard Connectors Feature Summary

• Single row female contact configuration for standard card edge insertion
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Green thermoplastic polyester housing providing thermal stability up to +105°C

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Automotive electronics demanding high-temperature reliability

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm terminal type and mounting style. Ensure compatibility with the target PCB layout for surface mount implementation. Cross-reference the 58-position count and 2.54 mm pitch requirements with system design specifications before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 58-position interface is required for surface mount assembly. The 2.54 mm pitch aligns with standard card edge thicknesses. Consider the 3 A current rating and +105°C temperature limit for environmental suitability in industrial or automotive contexts.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which offers various configurations of standard card edge connectors. The series provides options for different position counts, mounting styles, and contact plating materials. The 345-058-500-458 specifically addresses needs for higher-density single-row connections with surface mount termination.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers within the 345 series that match the 58-position and surface mount requirements.
