345-106-560-201

Edgeboard Connectors Overview

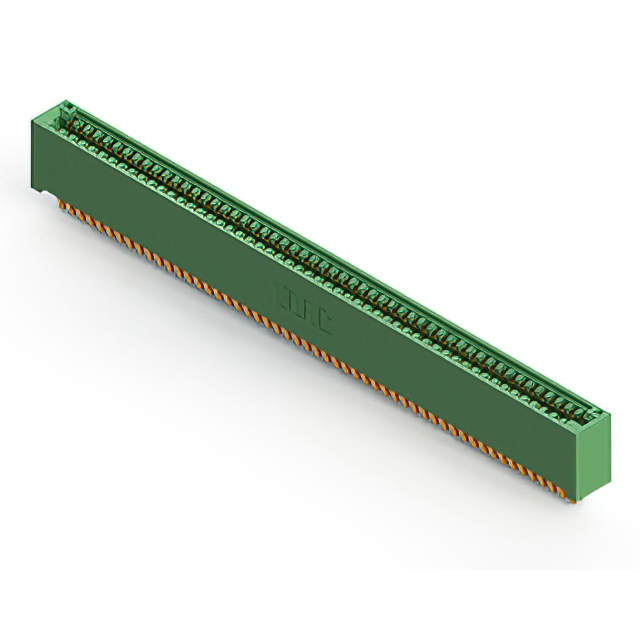

The EDAC Inc. 345-106-560-201 is a standard card edge connector socket featuring 106 positions with a 2.54 mm (0.100 inch) pitch. Designed for through-hole vertical mounting, it utilizes PC pin termination and gold-plated copper alloy contacts rated for 3 A current. The housing accommodates a board thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable card edge interface
• Gold-plated copper alloy contacts ensure durable conductivity
• Vertical through-hole mounting with PC pin termination

Edgeboard Connectors Applications

• General purpose electronic circuit interconnection
• Industrial control system module assembly
• Telecommunications equipment signal routing

Edgeboard Connectors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm pin count, pitch, and termination style. Ensure compatibility with target PCB board thickness and mounting orientation requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-sided card edge interface is required. The 106-position layout supports complex signal routing in constrained spaces. Verify that the vertical mounting profile and through-hole termination align with the mechanical design constraints of the host assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and mounting options, providing standardized interfaces for modular electronic systems requiring robust signal transmission between daughterboards and backplanes.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference data for compatible substitutes. Verify that any alternative maintains identical 106-position count, 2.54 mm pitch, and vertical through-hole termination specifications.
