346-024-555-808

Edgeboard Connectors Overview

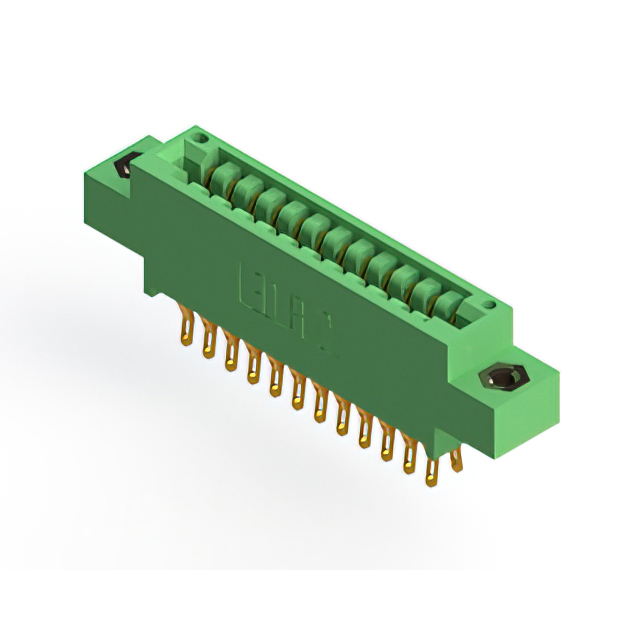

The EDAC Inc. 346-024-555-808 is a standard card edge connector receptacle featuring 24 positions with a 3.175 mm (0.125 inch) pitch. Designed for dual-edge card insertion, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The component supports a current rating of 3 A and operates within a temperature range of -40°C to +105°C. It employs a through-hole mounting style with PC pin termination and features a green thermoplastic polyester insulator housing.

Edgeboard Connectors Feature Summary

• Dual-edge contact configuration for secure board engagement
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Thermoplastic polyester insulator for thermal stability
• Through-hole PC pin termination for robust PCB attachment

Edgeboard Connectors Applications

• Industrial control systems requiring high-reliability interconnects
• Telecommunications equipment interface modules
• Medical device internal circuit connections
• Automotive electronics subsystems

Edgeboard Connectors Procurement Notes

Verify the specific suffix code '808' against the manufacturer's official datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB stack-up and hole dimensions before procurement. Cross-reference the RoHS status with the latest regulatory documentation to meet environmental compliance requirements for your region.

Edgeboard Connectors Selection Notes

Select this model when a 24-position dual-edge connector is required for vertical panel or board-to-board applications. The 3.175 mm pitch accommodates standard card edge thicknesses of 1.57 mm. Consider the 3 A current rating and operating temperature limits to ensure performance under expected load conditions. Verify that the through-hole footprint matches the design layout.

Edgeboard Connectors Part Context

This component belongs to the EDAC 346 Series, a line of standard card edge connectors designed for general-purpose electronic applications. The series offers various position counts and termination styles to support diverse interface needs. The 346-024-555-808 variant specifically addresses requirements for moderate-density connections with durable metallic contacts and stable insulation properties.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 346 series parts with identical pitch and position counts but different termination types. Verify mechanical dimensions and electrical ratings against alternative manufacturers' offerings to ensure functional equivalence in the final assembly.
